B150 Large Image Pad Printing Machine

B150 Large Image Pad Printing Machine

The Inkcups B150 large image pad printing machine is a versatile, benchtop pad printer used for industrial-grade, 1-color applications.

Key capabilities include:

  • Variable pad delays (over both the plate and the part) for precise timing control
  • Adjustable printing speed to match production needs
  • Double-print functionality to enhance ink coverage and opacity

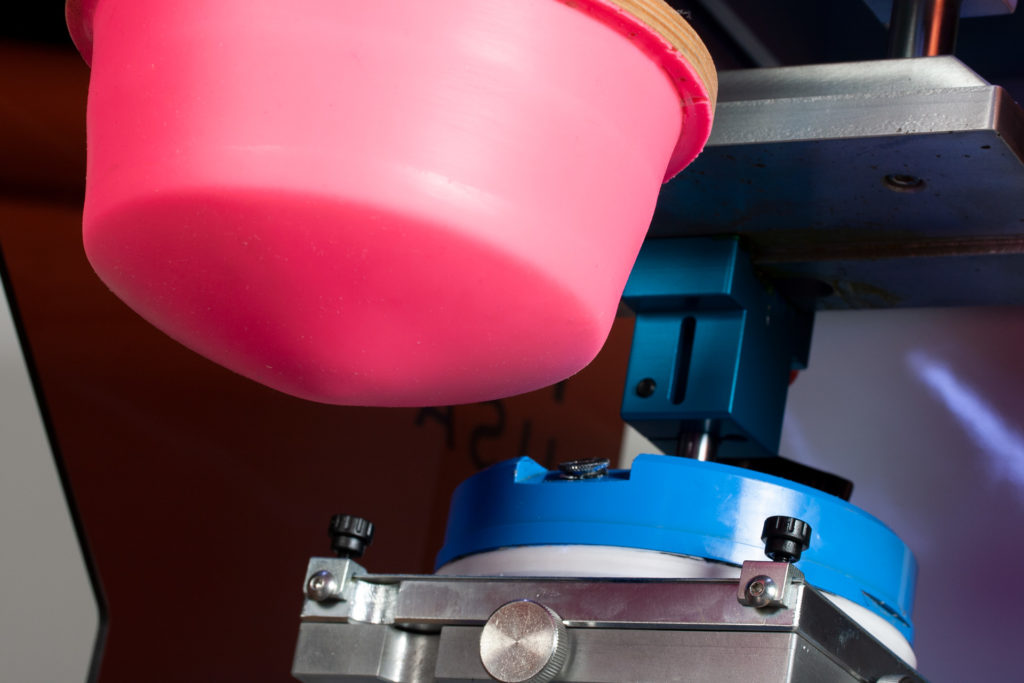

This large image pad printer features a 150mm VersaCup® ink cup assembly which prints images up to 140mm (5.5 in) in diameter. With a compression capability of 779 lbs and a maximum speed of 1,000 impressions per hour, it allows for easy handling of large, hard printing pads.

The B150 large image pad printer produces the highest quality images on drinkware, injection-molded housing, bezels, and other products up to 138 mm (5.5 in) in height.

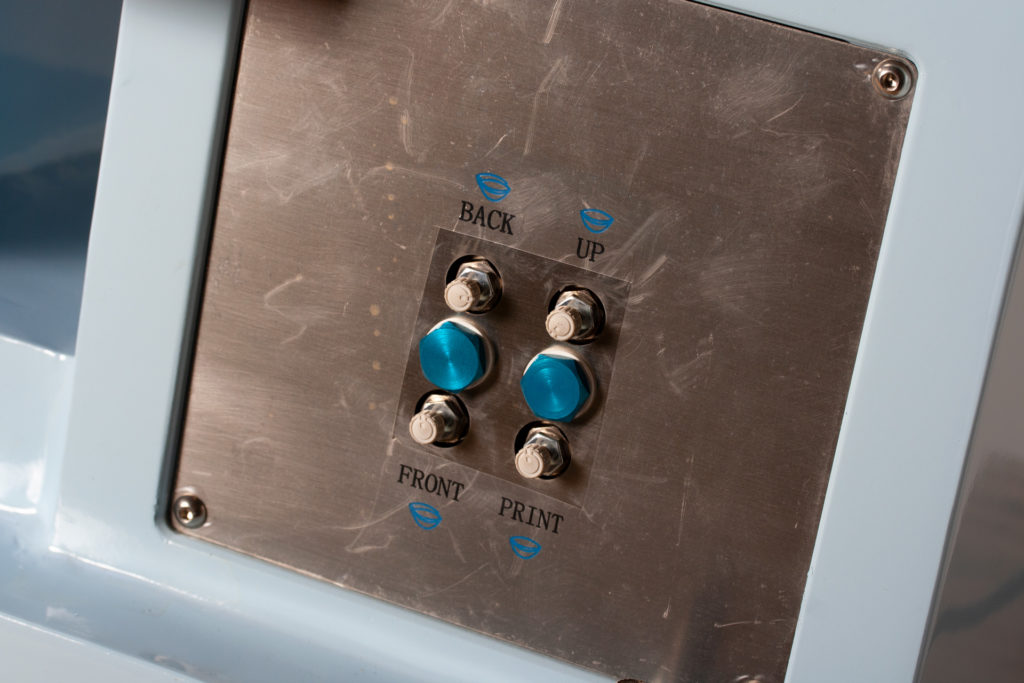

The B150 also simplifies setup and operation with a fully toolless design. Unlike traditional pad printing machines that require specialized tools to adjust components, operators can quickly reposition the cup, plate, and part, minimizing downtime and keeping production moving.

The B150 is also the go-to pad printer for tagless applications. Apparel printers incorporate this machine into their production line to print larger logos and care labels onto the neck labels of t-shirts, childrenswear and more.

Complete Pad Printing Solution

From ink cups to plates (clichés) to pad printing inks, Inkcups has everything you need to get started with pad printing. In addition to our equipment, we also offer specific services such as color matching, adhesion testing and custom tooling.

Need help with the B150 or other pad printing machines? Visit our FAQs section.

FEATURES

INDUSTRIAL CAPABILITIES

This pad printer is a workhorse, capable of constant 24/7 use with the ability to print large parts and reach a maximum compression of 779lbs. Easily incorporate this pad printing machine into industrial production settings by utilizing the B150’s small, yet durable benchtop design.

ICN-B150-Large-Image-Pad-Printer-

VERSATILE, COST-SAVING DESIGN

The ICN-B150 pad printing machine can be retrofitted with the Adjustable Stroke Modification Kit to accept a smaller plate and ink cup, allowing you to cut supply costs in half when printing smaller images (up to 80 mm in diameter).

Cost-saving benefits include:

  • Smaller 90 mm (3.5 in) ink cup reduces overall ink usage
  • Reduced plate size lowers supply costs by approximately 50%
  • Example: a 100 x 250 mm (3.9 x 9.8 in) plate costs about half as much as a 160 x 360 mm (6.3 x 14 in) plate

Additionally, without the use of the stroke modification kit, the B150 can also accept ink cup sizes of 135 mm.

Applications

ICN-B150 Large Image Pad Printer

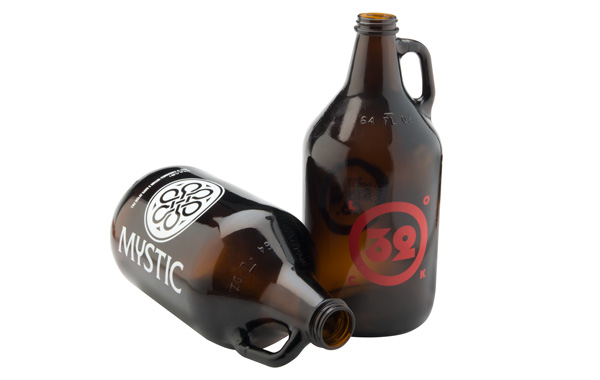

Growlers

Print on large parts with large images. Growlers are a perfect example of what the B150 pad printing machine is capable of. These growlers were printed using the CG Series pad printing ink for glass and ceramics.

Growlers are easy to customize with the B150. Each brewery wants its brand on the growler – take it a step further and customize each growler with more information about the beer!

Plastic Cups

A popular application for the ICN-B150 is printing full, vibrant colors in large images on plastic cups. Use the B150 with disposable and reusable plastic cups to add that personal touch or brand name. Inkcups provides a number of pad printing inks for both solvent-sensitive and not solvent-sensitive plastics.

ICN-B150 Large Image Pad Printer

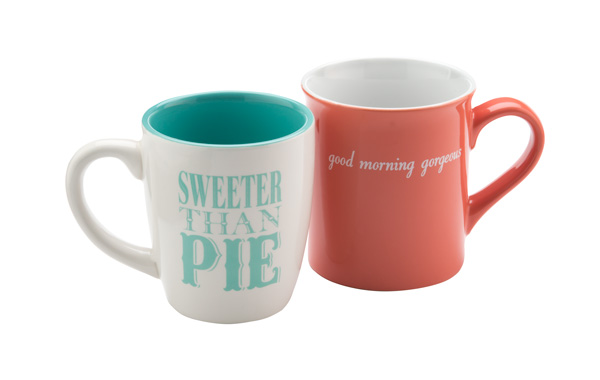

Mugs

Typically a difficult application for direct printing due to the handle, but the B150 pad printing machine is capable of conforming to the curvature of the mug to apply any 1-color graphic with ease. The CG Series pad printing ink is perfect for printing on ceramics with the B150.

Resources

B150 Brochure


Specifications

Number of Colors
1
Max. Image Size
140 mm (5.5 in)
Max. Part Height
138 mm (5.4 in)
Max. Speed
1000 iph
Ink Cup Size
150 mm (5.9 in)
Dimensions (L x W x H)
889 x 431.8 x 762 mm (35 x 17 x 30 in)
Mounting Options
Bench top
Plate size:
160 mm x 360 mm (6.3 x 14 in)
Current/Voltage (1 phase/50-60 Hz.):
5 A/110 V
Air consumption CFM (L/min):
.211 CFM (6L/min)
Approximate weight net/crated:
118/138 kg (260/305 lbs)
Crate size (L x W x H):
1067 x 610 x 965 mm (42 x 24 x 36 in)
