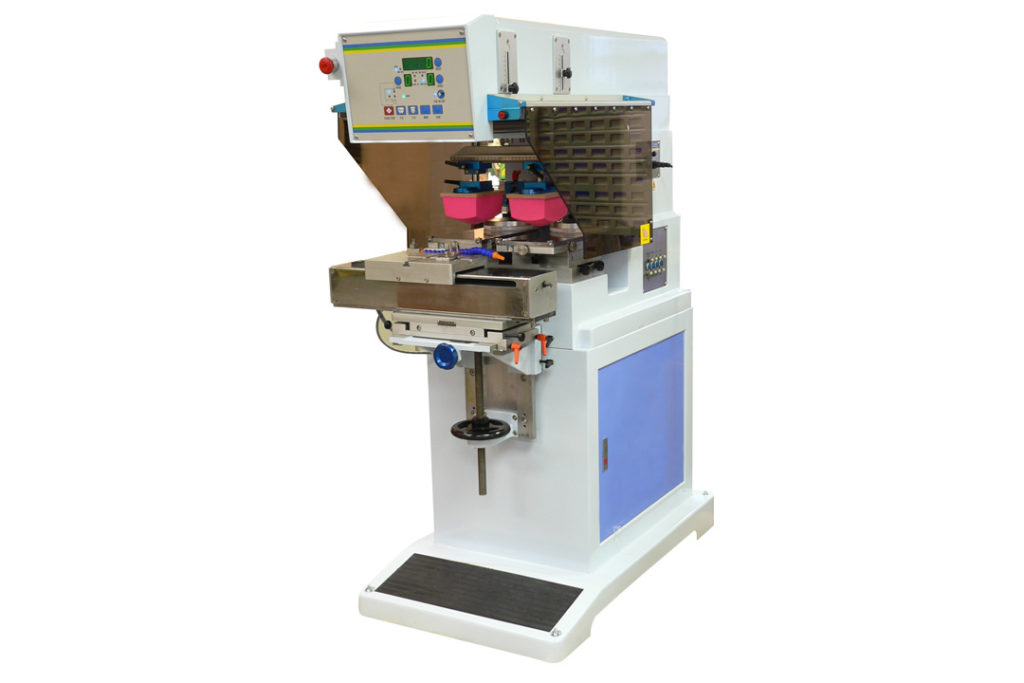

ICN-150 2-Color Large Image Pad Printing Machine

ICN-150 2-Color Large Image Pad Printing Machine

The ICN-150 is  an industrial 2-color large image pad printing machine designed for decorating oversized parts with high precision. It supports 150mm ink cups that enable printed images up to 140mm (5.5 in) in diameter, exceeding the typical industry standard of 115mm image capacity..

The machine’s pad and ink cup stroke allows for easy loading of large parts and fine-tuning for the highest quality images. It includes a 2-position pneumatic part shuttle, enabling it to shift with ease from one color to the next.

A Versatile Solution for Large Image Pad Printing

The ICN-150 2-color large image pad printer is available as a 1- or 2-color configuration, perfect for obtaining crisp, accurate graphics. It’s heavy-duty base cabinet, height adjustment assembly, and XYR tooling table provide stability and precise positioning during printing.

The machine’s enhanced pad compression capability provides ample room for large, hard printing pads or pad clusters, making it suitable for decorating oversized or irregularly shaped items

The ICN-150 large image pad printer is commonly used to print on:

  • Injection-molded housings
  • Appliance bezels
  • Drinkware and mugs
  • Beach balls and sporting goods
  • Large promotional products

The machine can print on parts up to 6.4 inches (162.56 mm) tall and is compatible with Inkcups solvent-based pad printing inks, enabling durable decoration across a wide range of materials.

Need help with the ICN-150 or other pad printing machines? Visit our FAQs section.

FEATURES

Print bigger

The ICN-150 pad printer machine is ideal for printing images up to 140mm (5.5 in) in diameter – significantly larger than the typical 115mm image capability supported by standard pad printing machines.

Other key features and design elements include:

  • Average Production Speed: 550-720 IPH
  • Maximum Artwork Size: 5” (140MM)
  • Plate Size: 5.5” (140MM)
  • Heavy-Duty Base Cabinet Assembly
  • Height-Adjust Assembly
  • XYR Tooling Table
ICN-B150-Large-Image-Pad-Printer-

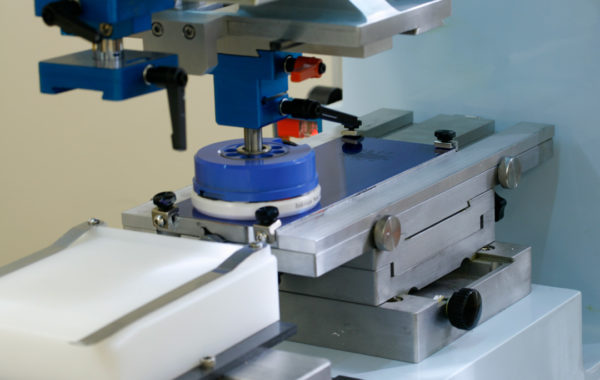

ADJUSTABLE STROKE MODIFICATION KIT

The ICN-150 can be retrofitted with the Adjustable Stroke Modification Kit, allowing the machine to accept smaller plates and ink cups when printing smaller images. This modification can significantly cut supply costs when printing graphics up to 80 mm in diameter..

A smaller 90 mm (3.5 in) ink cup will use less ink and reduce plate costs. For example, a 100 x 250 mm (3.9 x 9.8 in) plate costs about half the price of a 160mm x 360mm (6.3 x 14 in) plate.The Mod Kit can be easily installed onto the ICN-150 in under 3 minutes.

In addition, even without the use of the stroke modification kit, the ICN-150 is capable of accepting ink cup sizes of 135 mm, providing added flexibility for different print sizes and applications.

Applications

2-Color Large-Image Pad Printer

Toys

The ICN-150 large image pad printer enables vibrant two-color graphics on a wide range of toys and plastic products. Pad printing is particularly well-suited for decorating curved, textured, or irregular toy surfaces, like vehicles, dolls, and plastic playsets. This allows manufacturers to apply detailed graphics with consistent registration.

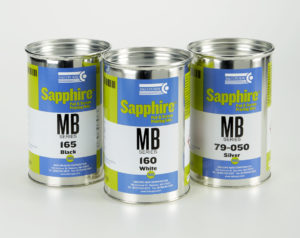

This machine can be used with a variety of pad printing inks formulated for different plastics and finish requirements, allowing manufacturers to achieve the desired durability, adhesion, and gloss level.

UV print on saw blades

Metal Fabricated Items

The ICN-150 large image pad printer also enables precise two-color graphics on a wide range of metal fabricated products. Materials such as aluminum, steel, copper, brass, and titanium can be pad printed with exceptional clarity, even on curved, textured, or uneven surfaces commonly found in fabricated components.

This printer is especially effective for decorating tools, technical parts, nameplates, and metal promotional items, allowing manufacturers to apply fine details and consistent graphics with accurate registration

Resources

ICN-150 Brochure


Specifications

Number of Colors
2
Max. Image Size
140 mm (5.5 in)
Max. Part Height
163 mm (6.4 in)
Max. Speed
600iph
Ink Cup Size
150 mm (5.9 in)
Dimensions (L x W x H)
813 x 762 x 1372 mm (32 x 30 x 54 in)
Mounting Options
Base cabinet
Air consumption CFM (L/min):
.264 CFM (7.5L/min)
Weight (Net/ Crated)
546 lbs (247 kg) / 890 lbs. (404 kg)
