ICN-150-4C 4-Color Large Image Pad Printing Machine

ICN-150-4C 4-Color Large Image Pad Printing Machine

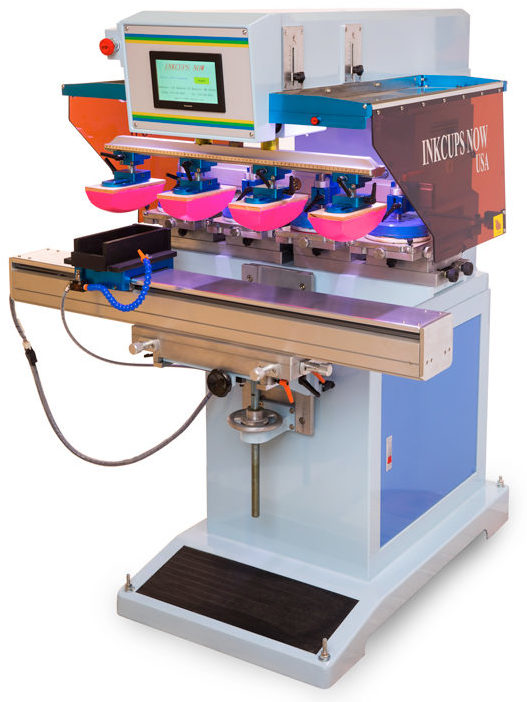

The ICN-150-4C is a four-color pad printing machine engineered for large part applications. It utilizes 150mm ink cups to produce printed images up to 140mm in diameter – significantly exceeding the industry’s standard 130mm ink cups, which max out at 115mm. The unique pad/ink cup stroke allows for easy loading of large parts and fine-tuning for the highest quality images.

The ICN-150-4C’s excellent pad compression capability provides ample room for large, hard printing pads or pad clusters.

Key features:

  • Accommodates up to four 150mm ink cup assemblies
  • Independent pad and ink cup stroke

Need help with the ICN-150-4C or other pad printing machines? Visit our FAQs section

Features

4-COLOR CAPABILITY

The ICN-150-4C pad printer’s 4-color printing capability adds a level of versatility to the machine, making it perfect for obtaining crisp, colorful, accurate graphics.

  • Expanded design flexibility for multi-color logos, gradients, and more complex artwork
  • Improved color accuracy and consistency across high-volume production runs

OPTIONAL ACCESSORIES

PART CAROUSEL

The ICN-150-4C pad printing machine includes a precision 22-station carousel-style part-transport system, which allows the user to easily load and unload parts while continuously printing to increase production efficiency.

*picture shown is of base ICN-150 model.*

Applications

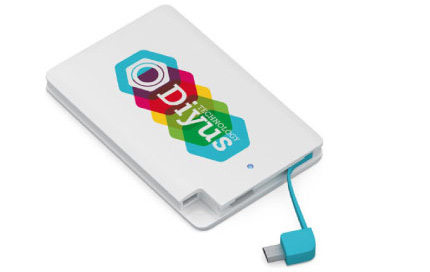

Example of a portable power bank customized with a full-color pad printed logo.

Power Banks

Print large, 4-color images with the ICN-150-4C. This portable power bank charger for electronic devices was customized with a corporate logo to provide a high-impact promotional branded giveaway.

Resources

ICN-150 4C Product Manual
ICN-150 4 Color w/Rotation Device Product Manual
Hard Hat Pad Printing Machine: ICN-150-4 Video Video
ICN-150-4C


Specifications

Number of Colors
4
Max. Image Size
140 mm (5.5 in)
Max. Part Height
163 mm (6.4 in)
Max. Speed
300 iph
Ink Cup Size
150 mm (5.9 in)
Dimensions (L x W x H)
1090 x 1130 x 1460 mm (42.9 x 44.5 x 57.5 in)
Mounting Options
Base cabinet
Air consumption CFM (L/min):
.159 CFM (4.5L/min)
Weight (Net / Crated)
646 lbs. (293 kg) / 890 lbs. (404 kg)
