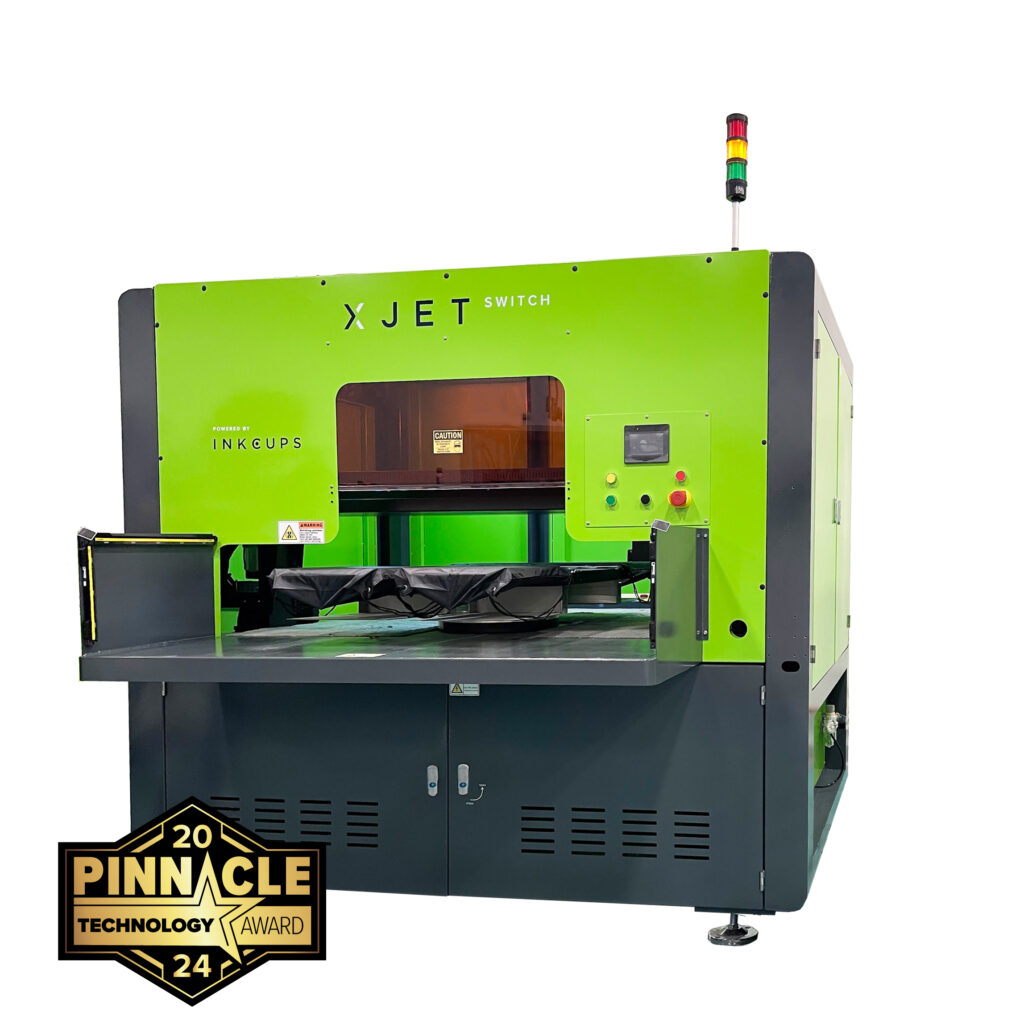

XJET Switch Flatbed UV Printer for Bags and Hardgoods

The XJET Switch is a specialized flatbed UV printer for full-color direct to reusable bag applications, hard goods and more. This cutting-edge machine harnesses the power of UV curable inks and advanced digital printing technology, enabling seamless production of vibrant, high-quality prints directly onto flat surfaces, including bags. The XJET Switch boasts a total print area of 13.8 inches x 25.6 inches (350 mm x 650 mm) with a maximum part height of 8 inches (203.2 mm).

Distinguished by its patented continuous printing technology, this state-of-the-art device allows operators to load products while the machine is in operation, optimizing production efficiencies. This flatbed UV printer enables the addition of multiple plates within the maximum width. It also facilitates a seamless switch from 180-degrees to 90-degrees for in-process pre-treatment. Moreover, the intuitive tooling design ensures effortless loading and unloading, while an optional smart spring-loaded tooling system further enhances convenience.

In terms of hardware excellence, the XJET Switch surpasses expectations. Equipped with two 16-watt UV lamps featuring variable power controls for utmost flexibility across different substrates, it delivers exceptional results. Additionally, the printer incorporates automatic purging, wiping, and capping stations, white recirculation capabilities, and uni- and bi-directional printing options. Harnessing the power of intuitive software, the XJET Switch allows for substrate-specific recipe storage and empowers users to create customized print modes, striking the perfect balance between speed and quality.

Unlike traditional printing methods such as screen printing or heat transfer, UV printing on tote bags offers the advantage of full-color (CMYKWW) graphics and images that are ready for shipping immediately after printing. The XJET Switch’s revolutionary UV printing eliminates the need for additional curing steps, saving valuable time and resources. Additionally, this advanced flatbed UV printer significantly reduces waste compared to alternative methods, enabling customers to embrace a sustainable and eco-friendly printing process.

The XJET Switch paired with XFLEXX UV ink can reproduce vibrant, full-color images on any surface color. Notably, the inclusion of XFLEXX Vivid White sets new benchmarks, with white logos and graphics appearing 30% more opaque than competing inks, rivaling the quality of screen printing.

XJET Switch MAJOR FEATURES

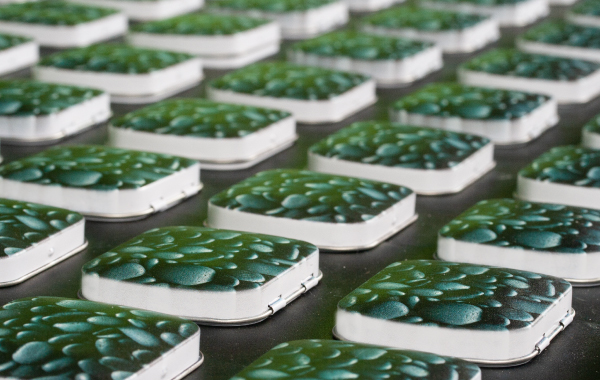

XJET Switch Flatbed UV Printer for Bags and Hard Goods- Hard Goods Switchover

Easily Switchover from Reusable Bags to Hard Goods

True to its name, the XJET Switch exhibits remarkable flexibility. Effortlessly transition from printing on tote bags to tackling a diverse range of hard goods, including plastic promotional items, notebooks, and beyond. Its adaptability extends further with the option to incorporate multiple platens within the expansive print area, enabling simultaneous printing of multiple smaller items. This inherent ability to seamlessly accommodate different products sets the XJET Switch apart as a truly distinctive printing solution.

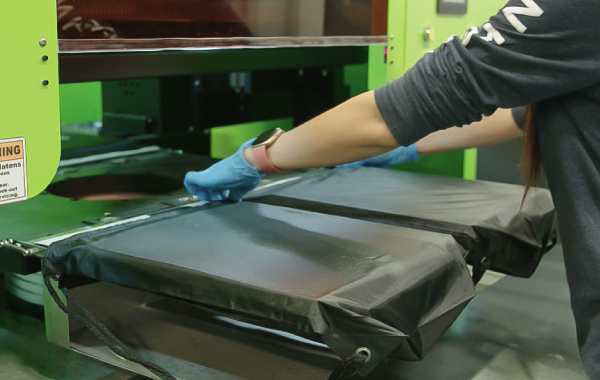

Continuous Printing Technology

This advanced machine offers the unique ability to load and unload items while printing operations are underway. Upon completion of the printing process, the printer’s table shifts to the front position, facilitating unloading of finished items and subsequent reloading for continued production. This feature enhances operational efficiency, allowing for uninterrupted workflow and maximizing productivity.

Servo-Controlled Indexer

By default, the indexer of the XJET Switch operates at a standard 180-degree angle, seamlessly facilitating the entire process of printing and switching. However, for instances where in-line pre-treatment is necessary, the indexer can be switched to 90-degrees. This configuration allows the item to undergo the required treatment before indexing another 90 degrees, ensuring optimal positioning for printing. The XJET Switch’s indexer versatility enables efficient and convenient integration of pre-treatment processes into the printing workflow.

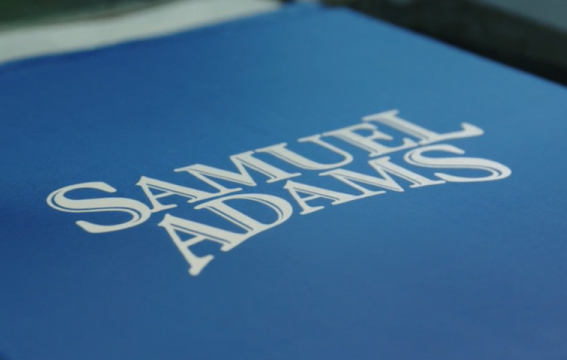

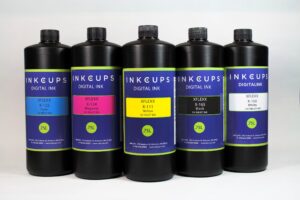

Best in Class UV Inks

The XFLEXX UV Inkjet Ink Series represents the epitome of ink perfection for bags and an array of other hard goods. Striking an impeccable equilibrium between flexibility and durability, XFLEXX Ink delivers unparalleled vibrance across diverse substrates and colors, rendering it the quintessential choice for the XJET Switch. When combined with the XFLEXX Vivid White, the ink’s ability to achieve remarkable opacity surpasses competing ink formulations by an impressive 30%, rivaling the quality achieved by screen printing inks.

Sustainable Process

In the realm of printing, digital technology has emerged as a pioneering force in sustainability. When compared to traditional methods like screen printing or heat transfers, digital printing showcases significant environmental advantages. By adopting digital printing techniques, wasteful processes such as color separations and setup times are minimized, substantially reducing material and energy consumption. Additionally, digital printing produces less chemical waste, as it eliminates the need for excess ink mixing and cleanup. Moreover, the precision and efficiency of digital printing contribute to diminished production waste, further lessening its ecological footprint. Embracing digital printing not only enables businesses to achieve vibrant and intricate designs but also fosters a more environmentally responsible approach to printing, aligning with sustainable practices for a greener future.

SAFETY FEATURES

CE Certified

Inkcups understands the safety requirements for countries across the globe. The XJET Switch is CE Certified to comply with EU healthy, safety and environmental requirements.

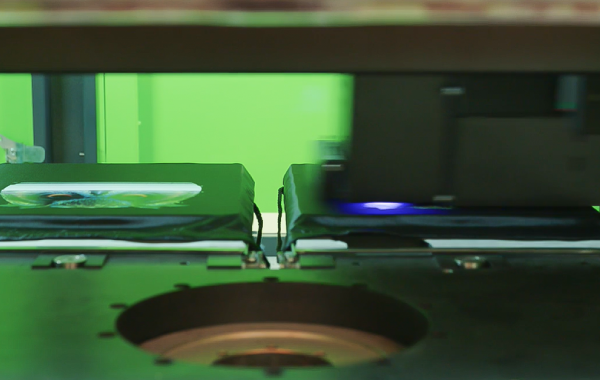

Anti-Crash Sensors (on X and Y direction)

Safeguard your print heads with the advanced protective capabilities of the XJET Switch. Equipped with cutting-edge anti-crash sensors, this sophisticated system effectively prevents printhead collisions with fixtures or parts during the printing process. Upon detecting any potential interference, the machine promptly halts, returning to its initial start position. This pivotal pause enables the operator to make necessary adjustments to the part, subsequently allowing for seamless continuation of the printing operation.

Intuitive Light Curtain

The XJET Switch features a state-of-the-art intuitive light curtain system meticulously designed to ensure operator safety during printing operations. In the event of a light curtain breach while printing, the platens will automatically suspend rotation until the presence of any obstructing object is no longer detected, thereby preventing any potential hazards. Furthermore, during active platen movement, should the light curtain be broken, an immediate motion halt will be triggered, prioritizing the well-being of the operator above all else. This robust safety mechanism underscores the XJET Switch’s commitment to maintaining a secure working environment and mitigating any risks associated with its operation.

Applications

Canvas Bags

Elevate the sustainability quotient of your reusable tote bag by embracing an eco-conscious process. Experience the seamless precision of the XJET Switch as it flawlessly reproduces captivating full-color graphics and images onto one of the most coveted reusable bag materials: canvas. Enhance your product offerings with the addition of professionally printed canvas bags that align perfectly with your brand identity, embodying a harmonious blend of style and environmental responsibility. Let the XJET Switch empower you to make a lasting impression while championing sustainability.

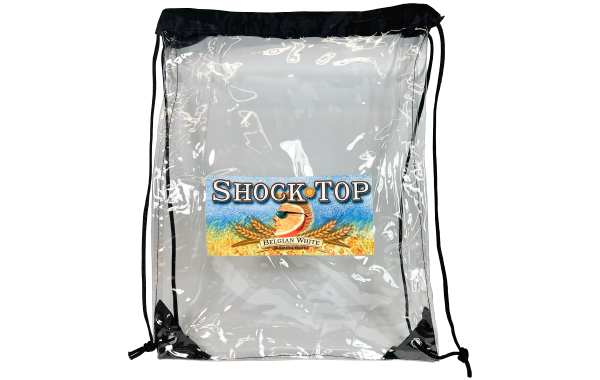

PVC Bags

In today’s stringent event regulations, PVC bags or clear stadium bags have become a mandatory requirement in most large-scale event venues, encompassing concerts, sports events, and beyond. Capitalizing on this trend, the opportunity to enhance these bags has emerged. By leveraging cutting-edge technology, team logos and cherished concert moments can now be impeccably printed directly onto these bags, elevating their appeal and desirability among attendees. The ability to personalize and customize these bags with event-specific graphics adds a touch of exclusivity, further enhancing their allure. Stay ahead of the curve and captivate your audience with these enticing and customized PVC bags, perfectly tailored for the demands of today’s event landscape.

Read Blog Post: Untapped Branding Opportunity: Clear Concert Bags

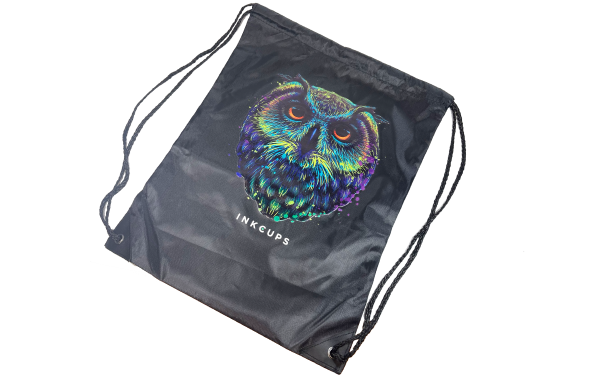

Polyester Bags

Promotional bags, specifically drawstring backpacks fabricated from polyester material, typically undergo decoration through the employment of heat transfers. When it comes to polyester bags, UV printing offers an optimal solution, producing full-color images, including white, with the added advantage of immediate dryness upon completion of the printing process.

Read Blog Post: Rise of Reusable Bags: Different Methods for Decoration

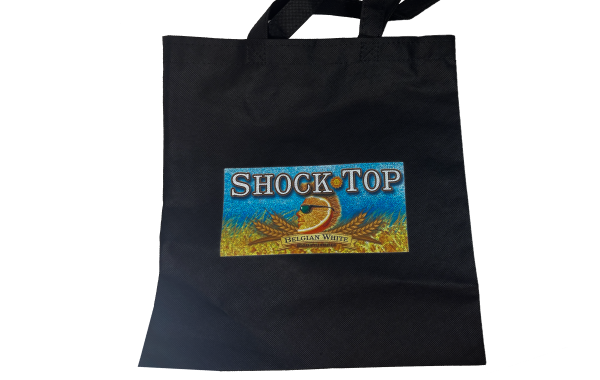

Non-Woven Bags

Non-woven bags possess a distinctive characteristic that sets them apart from conventional tote bags: their non-planar structure. These bags are predominantly utilized in settings such as grocery stores, where they serve as ideal carriers for food products. Enhance the visual appeal of your non-woven bags by adorning them with intricate full-color designs.

Read Blog Post: Print on Non-Woven Fabric Bags with Digital Technology

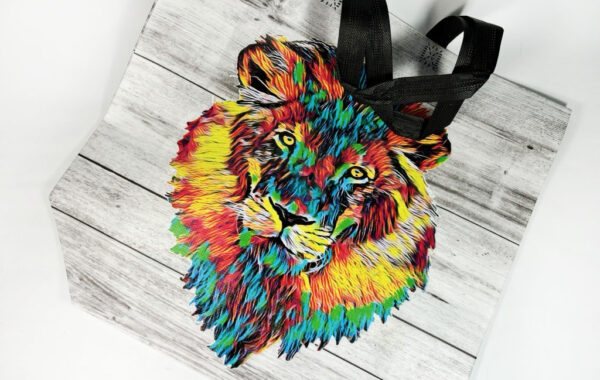

Coated Non-Woven Bags

Non-woven bags are available in diverse compositions. As demonstrated on the left, we showcase a coated non-woven bag. The distinctive non-woven attributes are discernible both on the inside and through the handles, yet they are less conspicuous on the exterior. The glossy surface of the bag provides an excellent canvas for digital decoration.

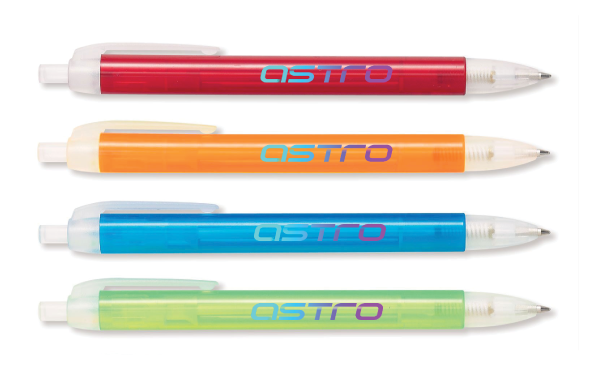

Promotional Products

The XJET Switch offers a distinct advantage by seamlessly transitioning to accommodate a wide range of hard goods. Unlock the potential to print on diverse items such as notebooks, pens, power banks, and beyond, with the precision and efficiency of this UV flatbed printer. The XJET Switch’s cutting-edge technology empowers you to extend your printing capabilities beyond traditional mediums, expanding your product offerings and captivating a broader market. Embrace the limitless possibilities of this exceptional printer as it effortlessly transforms to meet your evolving needs, ensuring unparalleled quality and performance across a multitude of hard goods.

Resources

XJET Switch	Brochure	us es de NL
XFlexx Ink Cyan SDS	Safety Data Sheet	us
XFlexx Ink Magenta SDS	Safety Data Sheet	us
XFlexx Yellow Ink SDS	Safety Data Sheet	us
XFlexx Ink Black SDS	Safety Data Sheet	us
XFlexx White Ink SDS	Safety Data Sheet	us
XFlexx Ink Vivid White	Compliance Document	us

Specifications

Product Type

Flat or slightly curved

Bed Size

25.6" x 13.8" (650 mm x 350 mm)

Max. Part Height

8" (203.2 mm)

Lamp Style

(2) 16W UV Lamps with Variable Power

Ink Type

UV LED

Ink Configuration

CMYKWW

Print Modes

Uni/Bi Directional

Dimensions (lxwxh)

108" x 79" x 90" (2.75 m x 2.01 m x 2.3 m)

Voltage

220 VAC, Single Phase/ Electrical Receptacle: L6-20R/ Frequency Range: 50/60 Hz Auto Switching/ Current Max: 20A

Bed Type

Flatbed with servo indexer

Weight

3200 lbs (1452 kg)
