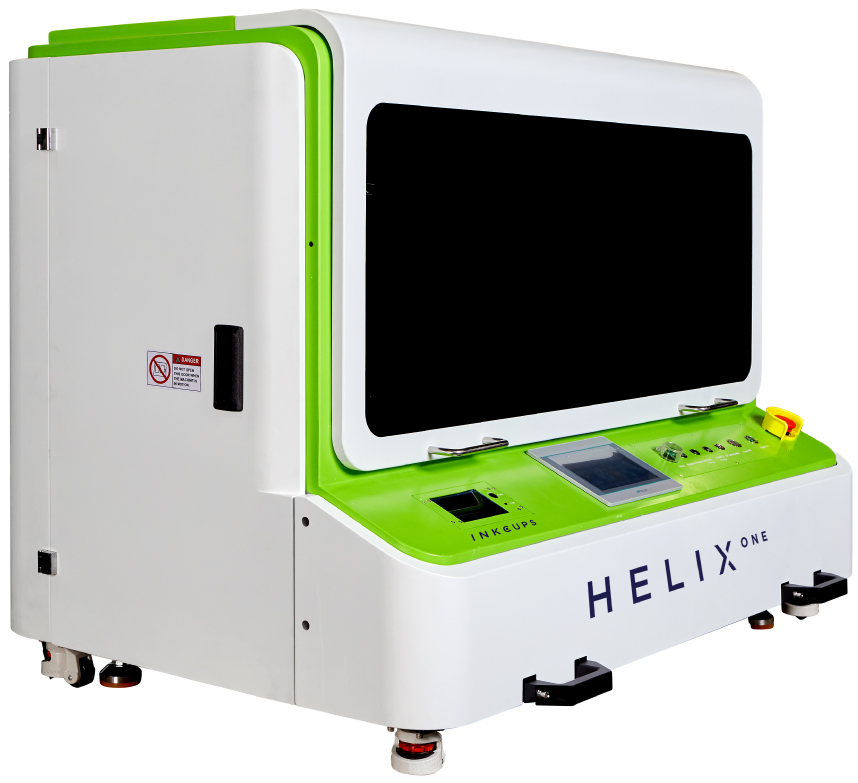

Helix ONE®: Benchtop Cylindrical Printer

Helix ONE®: Benchtop Cylindrical Printer

The Helix ONE® benchtop cylindrical printer joins the Helix® line of direct-to-object printers. This machine utilizes patented Helix® technology in a more compact benchtop design. Designed to decorate straight walled and tapered cylinders including plastic bottles, stainless tumblers, candle holders and more, the helix ONE® is an ideal printing solution for a wide variety of customers; from those who are just starting out to those who require a machine per SKU.

Although a benchtop machine in nature, the components of the Helix ONE® are far superior to competitive products in the market. Key features include:

  • Motor-driven operation with a fully automatic, programmable tooling fixture and height adjustment system

  • High-precision linear drive for smooth, repeatable motion

  • 8-watt segmented, software-controlled UV curing unit for optimized ink curing and adhesion

  • Automatic wiping system plus dedicated white and black sub-tank stirring for consistent ink flow

  • State-of-the-art MEMS print heads with integrated temperature control and ultra-fine 3-picoliter drop size

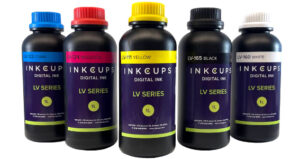

Paired with the LV Series UV printer ink, the Helix ONE® is able to reproduce vibrant and intricate images onto a variety of substrates and vessel types in full CMYK and Varnish.

HELIX ONE® MAJOR FEATURES

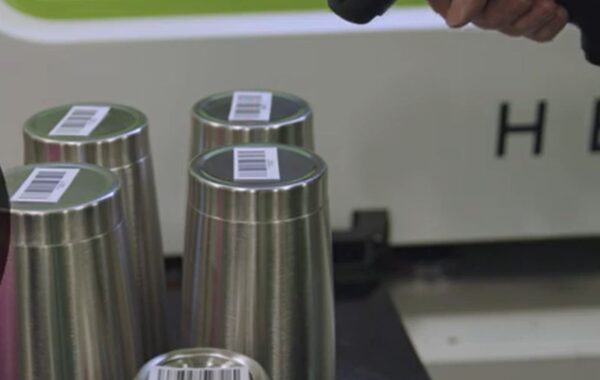

Auto File Helix ONE

Auto File

Auto File on the Helix ONE® is twofold. First it includes bar code scanning capabilities for Print-On-Demand business models.

  • Barcode scanning integration – Simply scan, load, print, and pack. The machine automatically verifies that the correct part has been loaded before printing.
  • Smart part detection – If an incorrect item is scanned, the system halts printing, preventing costly misprints.
  • Sequential printing – Automatically prints all subsequent files in a batch, minimizing downtime and operator intervention.

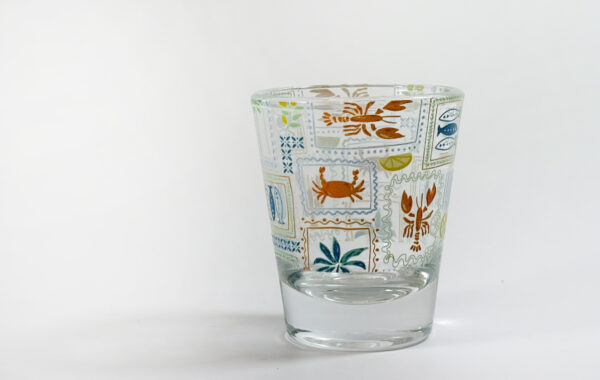

Lobster Shot Glass

Decorate Small Diameter Vessels

The Helix ONE® can be equipped with a small diameter capability, enabling users to print on parts as narrow as 1.3 inches (33 mm) in diameter and between 2 to 4.2 inches (51 to 105 mm) in length. This feature is ideal for both new and existing Helix ONE® users looking to expand their product offerings to include items such as shot glasses, sample bottles, and more.

Learn More about the Helix ONE® Upgrades

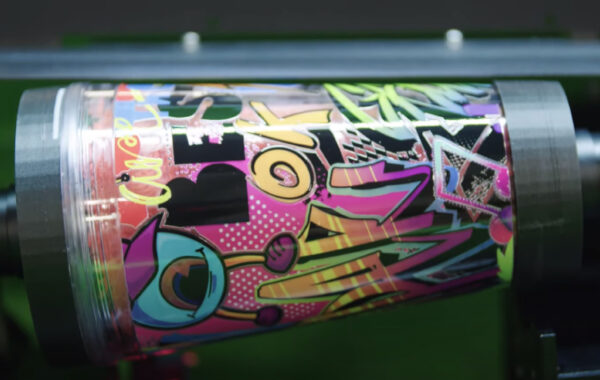

Helix ONE varnish

PRINT W+CMYK+V IN TANDEM

The Helix ONE® benchtop cylindrical printer has the unique ability to print white, CMYK and varnish in tandem due to the segmented UV lamp.

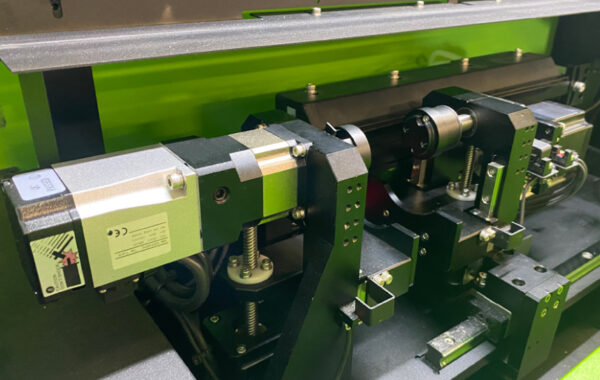

Helix ONE Fully Automatic Programmable Tooling Fixture and Height Adjust

Fully Automatic Programmable Tooling Fixture and Height Adjust

The Helix ONE®’s fully automatic programmable tooling fixture with height adjust precisely holds and positions vessels during UV printing.

Key benefits:

  • Automatically adjusts position and orientation based on vessel geometry.

  • Enables quick, repeatable setup across multiple workpieces.

  • Maintains consistent, accurate print alignment for every product.

This smart automation reduces manual calibration and improves throughput for varied production runs.

Automatic Wiping Station

A wiping station for inkjet printers is an essential component that helps to maintain quality and longevity. By doing so, it ensures that the Helix ONE® Benchtop Cylindrical Printer is always ready to produce high-quality prints. The wiping station is typically located on the printer’s carriage assembly and contains a rubber wiper blade that cleans the printhead as it moves back and forth across the substrate.

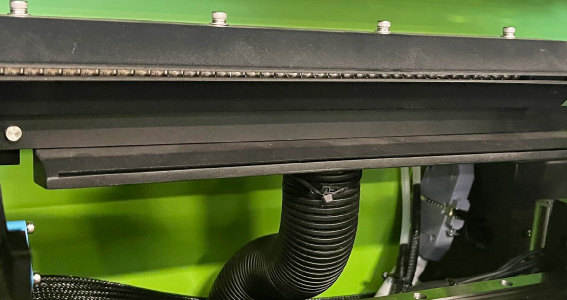

Helix ONE 8W Segmented Software Controlled UV Curing Unit

8W Segmented Software-Controlled UV Curing Unit

The Helix ONE® Benchtop Cylindrical Printer features a unique segmented design that allows for independent control of each segment, enabling users to target specific areas of a workpiece and achieve precise curing results.

Highlights:

  • Powerful 8-watt segmented UV curing unit with software-controlled precision..

  • Adjustable curing parameters via intuitive software.

  • Fast, reliable curing performance suitable for diverse substrates

Optional Accessories

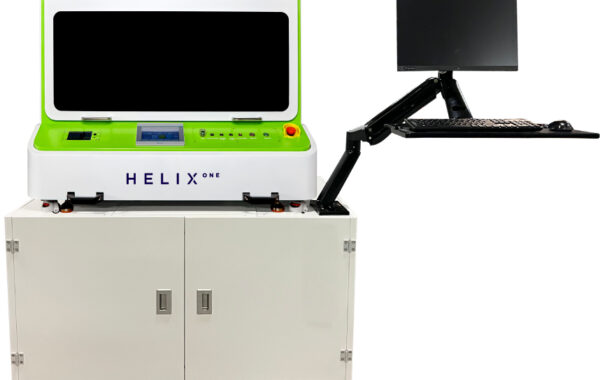

Helix ONE benchtop cylindrical printer on bench

Industrial Base and Storage Cabinet

The optional industrial base and storage cabinet was specifically developed for the Helix ONE® benchtop cylindrical printer. Featuring a solid base with storage, this cabinet carries the full weight of the machine and offers ink and supplies storage underneath.

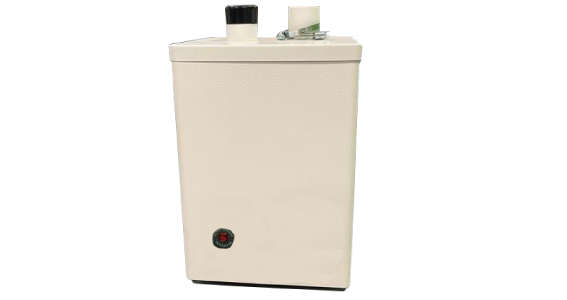

RX3 for the Helix ONE cylindrical printer

Mist Extraction System

The optional mist extraction system for the Helix ONE® helps to prevent build up of ink and other debris. The mist extraction unit consists of a fan and filter system that draws in the air and captures the ink mist and other particles before they can escape into the environment. This helps to maintain a cleaner work environment by reducing the amount of airborne ink particles that can settle on surfaces.

Applications

Helix ONE Powder Coat Tumblers

Powder Coated Drinkware

The Helix ONE®’s LV Series is perfected suited to print on powdered coated drinkware.

Learn more about drinkware printing applications

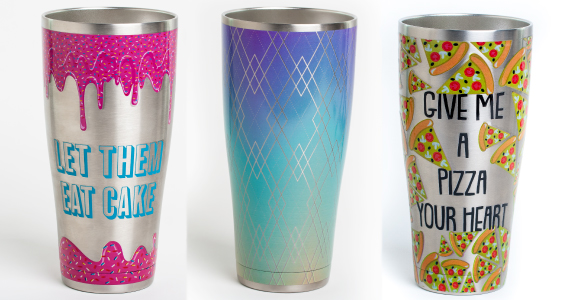

Helix ONE stainless tumblers

Stainless Steel Tumblers

The Helix ONE® offers great adhesion and abrasion resistance to stainless steel tumblers, wine tumblers, and more!

Read Blog Post: Helix ONE® Print Quality Highlight: Seamless Printing

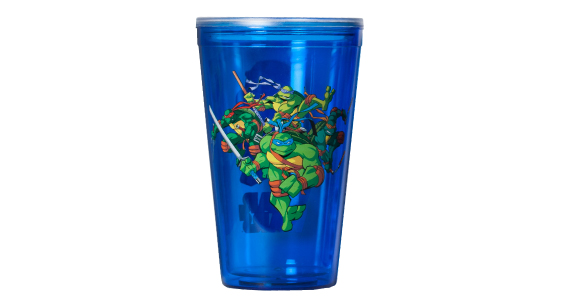

Helix ONE Plastic Cups

Plastic Cups

Print full CMYKW + V on a variety of plastic cups including acrylic.

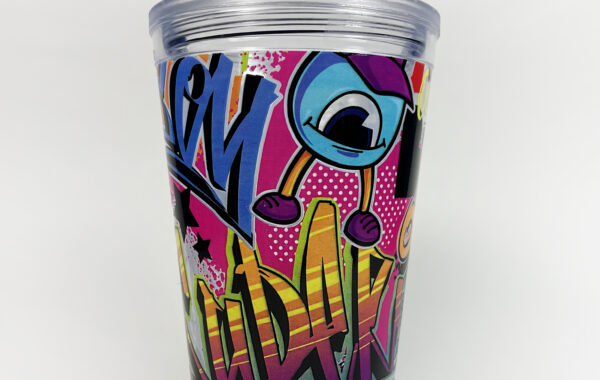

Read Blog Post: Elevate Your Offerings with UV Cylindrical Printing on Acrylic Cups

Dedicated Blog Articles about Helix ONE®:

Helix ONE® in Their New Homes

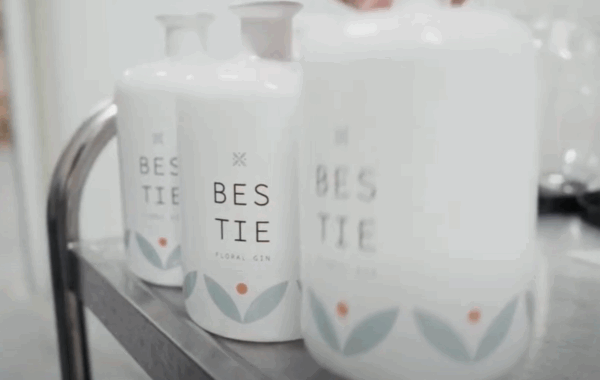

Sterkstokers printed gin bottles

Helix ONE® in Belgium at Sterkstokers

The first Helix ONE® has officially found its home in Belgium at Sterkstokers, a craft distillery embracing cutting-edge customization. By shifting away from traditional adhesive labels, the Helix ONE® empowers brands to stand out through direct printing technology. The addition of the Helix ONE® and direct-to-object printing has elevated Sterkstokers’ bespoke brand vision, delighting customers and setting a new standard in personalized packaging.

Inkcups’ Helix ONE® technology helps Sterkstokers Distill with a Difference
Google Event

Helix ONE® in Action

At the Movie Park Germany amusement park in Bottrop, Germany, Bobby Grauf, the Managing Director of Europe at Inkcups, provides an overview of the seamless printing experience with the Helix ONE® benchtop cylindrical printer. Watch the full clip here: Helix ONE® at Google Pixel event at the Movie Park Germany amusement park in Bottrop, Germany

The Branding Lab Case Study

The Branding Lab’s Helix ONE®

After seeing the Helix ONE at PSI in January of 2024 the Managing Director, Elliott Sampson, knew the Helix ONE® cylindrical printer would be the right addition to The Branding Lab in Birmingham, United Kingdom. The Helix ONE® allows the contract printer to meet much quicker turnarounds and wows customers with each stellar print.

Learn more about the Helix ONE® at The Branding Lab

Resources

Helix® ONE Benchtop Cylindrical Printer Video
Helix® ONE Benchtop Cylindrical Printer Overview Brochure

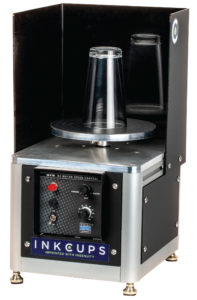

Wash Test Results- LV Series & MagiCoat™ Wash Test Results


Specifications

Product Type
Cylinder or Taper (360 degree print)
Part Diameter
1.77″- 4.6″ (45 mm – 116m)
Part Length
51 mm - 310 mm (2.0" - 12.2")
Lamp Style
8W LED
Ink Type
UV LED
Ink Configuration
CMYKWV
Dimensions (lxwxh)
1227 mm x 825 mm x 950 mm (48.3" x 32.5" x 37.4")
Maximum Resolution
600 x 1200 dpi
Weight
650 lbs. (295 kg)
