Pretreatment Systems for Digital Printing

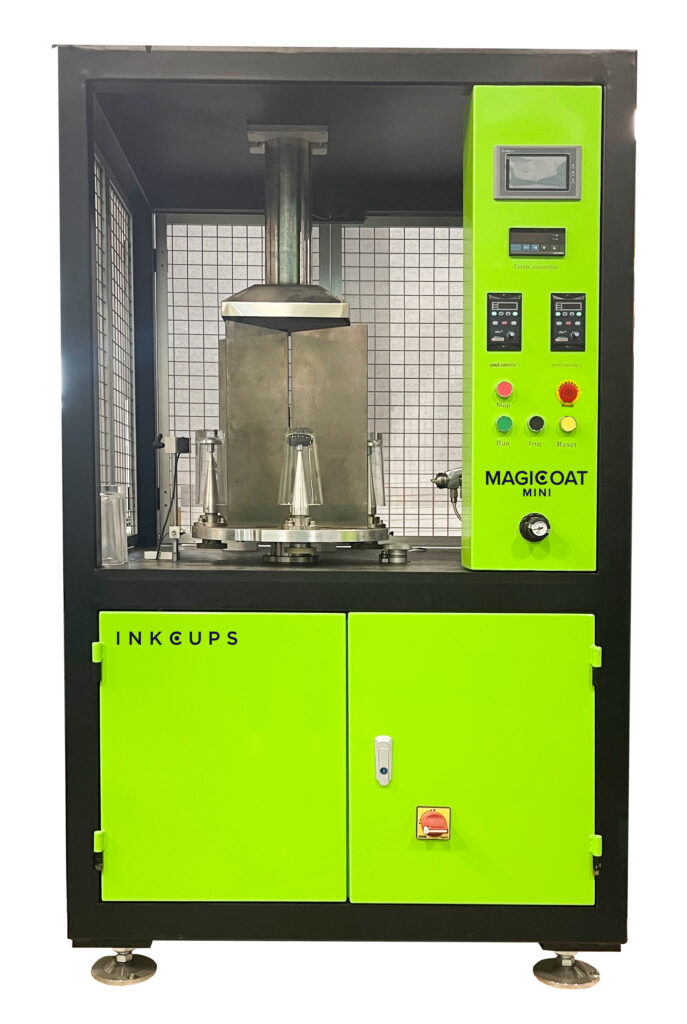

MagiCoat™ Mini Pre-Treatment System

MagiCoat™ Mini Pre-Treatment System

The MagiCoat™ Mini encapsulates everything that our customers have come to appreciate in the MagiCoat™ Glass Pre-Treatment System, now in a scaled-down version designed for customers with low to medium-run SKUs. This pre-treatment system is suitable for glass and other materials and incorporates both a flame treatment system and a spraying system for applying primers. The system features four independently rotating stations, one flaming station, and one flaming head. When paired with MagiCoat™ Solution, one can achieve up to 200 residential washes or up to 600 industrial washes for glassware vessels.

Inkcups MagiCoat Glass Primer

MagiCoat™ Solution – Glass Primer

MagiCoat™, our specialty primer, is composed of three water-based components: A, B, and C. After flaming the glass, you can apply the mixture of these components A, B, and C directly onto the vessel through spraying. With the combination of MagiCoat™ Solution and the MagiCoat™ Mini Pre-Treatment System, you can achieve up to 200 residential washes and up to 600 industrial washes. It’s worth noting that MagiCoat™ Solution complies with FDA 21 CFR 175.300, CPSIA, and California Prop 65 regulations.

Mini MagiCoat Sprayer

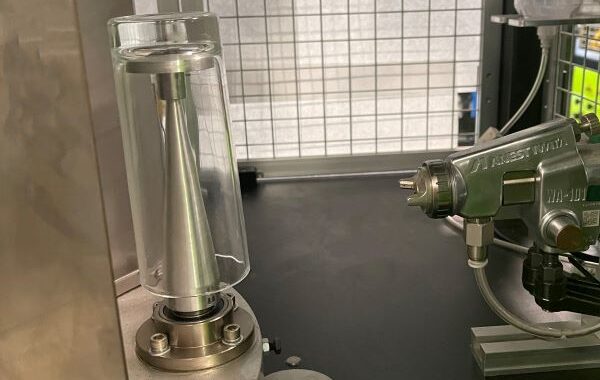

Fine Mist Spraying System

Every MagiCoat™ Mini comes equipped with a fine mist spraying system to ensure that each vessel is evenly primed post-flame treatment.

4 Rotating Stations

The MagiCoat™ Mini features four rotating stations where vessels can securely rest on the tooling as they move through the machine.

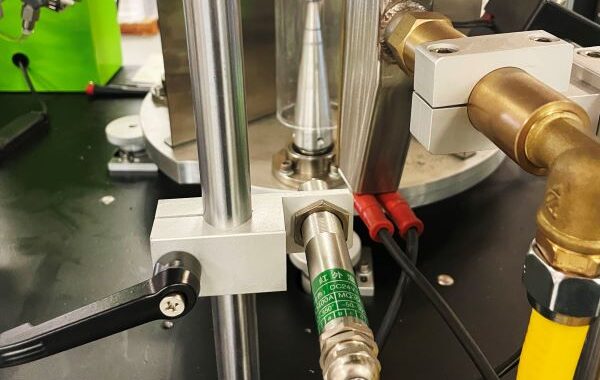

Temperature Detect

The MagiCoat™ Mini, with precision, indexes upon reaching optimal temperature.

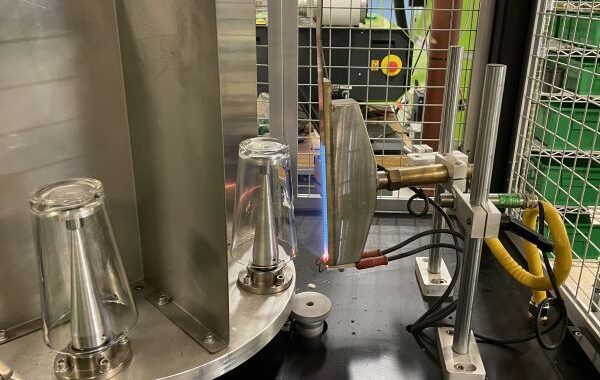

Flaming Station

For treating both tapered and straight items, the MagiCoat™ Mini has one flaming station and one flaming head to uniformly pre-treat.

Resources

MagiCoat™ Mini Pre-Treatment System Brochure
Wash Test Results- LV Series & MagiCoat™ Wash Test Results


Specifications

Stations
4
Flame Heads
1
Gas Requirements
50,000 BTU/hr: Maximum operating approx. 30,000 BTU, minimum operating 10,000 BTU | 13wc minimum to 277wc maximum, range must not exceed 10 PSI | 3/8" flared gas hook-up
Air Requirements
15+ CFM continuous air at 80 - 100 PSI
Machine dimensions
44" x 41" x 68" w/ light stack: 84" (1.2 m x 1.1 m x 1.73 m w/ light stack: 2.14 m)
Machine Weight
1157 lbs (525 kgs)
