Pretreatment Systems for Digital Printing

MagiCoat™ Pre-Treatment System

MagiCoat™ Pre-Treatment System

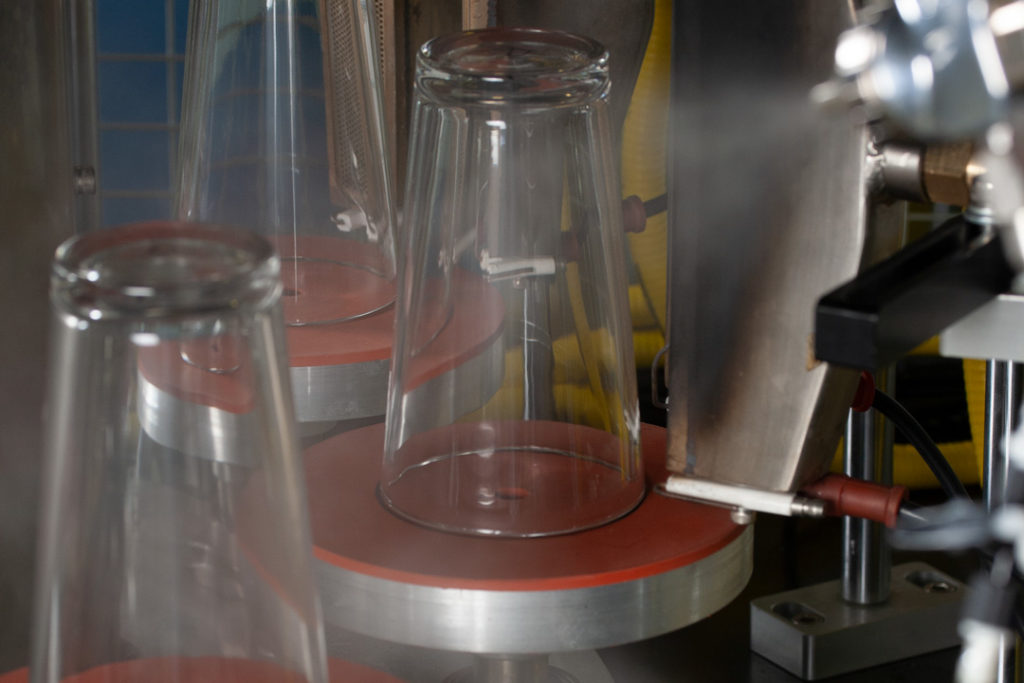

The MagiCoat™ Glass Pre-Treatment System is the all-new system for pre-treating glass and other materials. This system utilizes a flame treatment system along with a spraying system for spray-on primers. This system boasts 8 stations that rotate individually while going through the system. Each item is flame treated to eliminate debris and coatings put on items such as glass that inhibit adhesion. The system also offers variable mist settings to adjust for a wide variety of surfaces. Utilize the MagiCoat™ Pre-Treatment system with the all-new MagiCoat™ Solution for glassware items!

  • Pre-treat up to 450 pretreated parts per hour (glass/ceramic), while other substrates can reach upward to 1,000 parts per hour where dishwasher resistance is not required

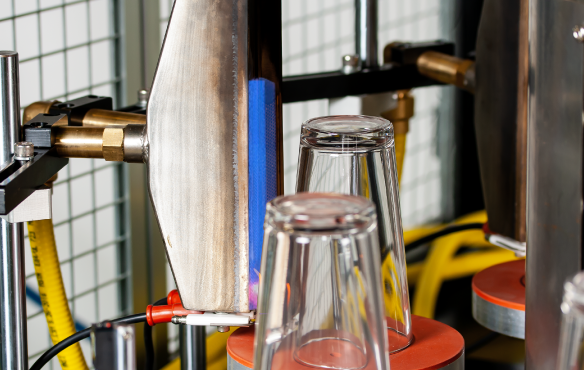

  • 3 flaming stations and 6 flaming heads

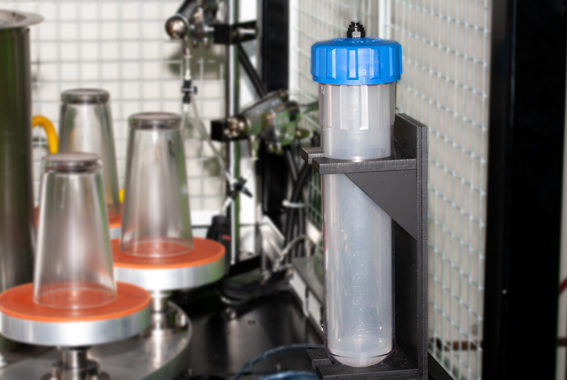

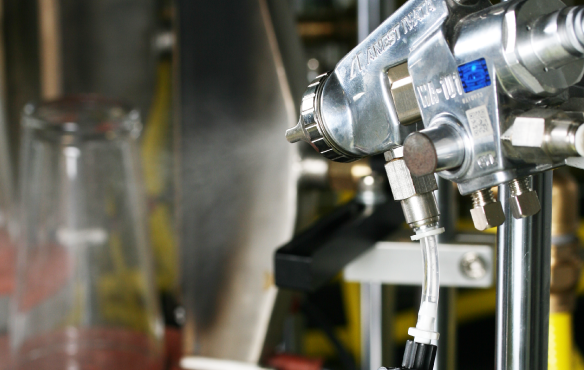

  • Fine mist-spraying system for MagiCoat™ application

For more information about glassware printing, read: How to Print on Glass

OPTIONAL ACCESSORIES

What our Customers Have to Say

Resources

Specifications

Stations
8
Flame Heads
6
Exhaust
Integrated exhaust system
Gas Requirements
60,000 BTU/hr | Natural Gas: 83 wc. Min, 160 wc. max | Incoming natural gas pressure should be a minimum of 5 PSI and must not exceed 10 PSI
Air Requirements
15 SCFM @ 80 PSI
Machine dimensions
57" x 51" x 72" w/ light stack: 88" (1.5 m x 1.3 m x 1.83 m w/ light stack: 2.24 m)
Machine Weight
2000 lbs (908 kgs)
