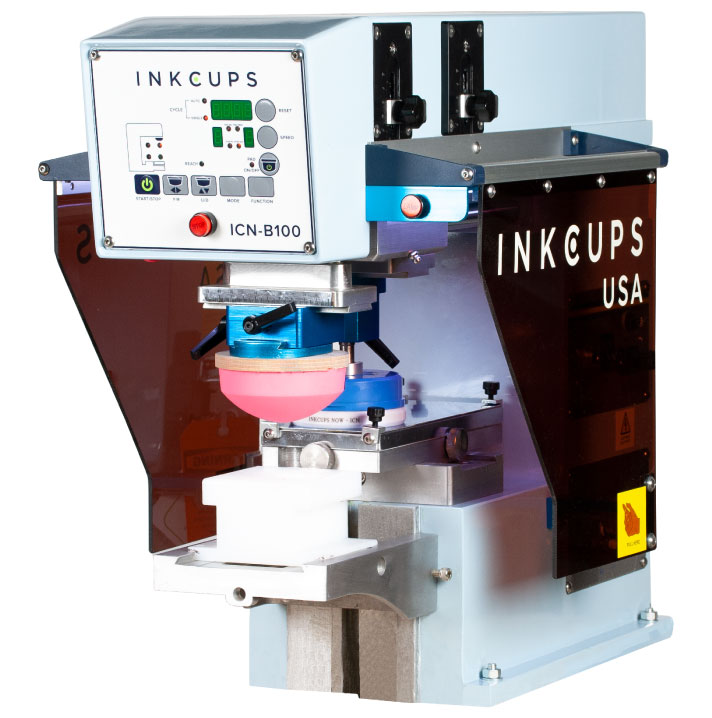

B100 1-Color Tabletop Pad Printing Machine

B100 1-Color Tabletop Pad Printing Machine

The B100 1-color tabletop pad printer is a high-speed pad printing machine which offers a multitude of unique features and capabilities. This 1-color pad printer has been one of our best-sellers for plastic parts, promotional products, medical and electronic devices. Thousands of B100s are also in operation at apparel factories worldwide, equipped with tagless garment fixtures for efficient label-free printing.

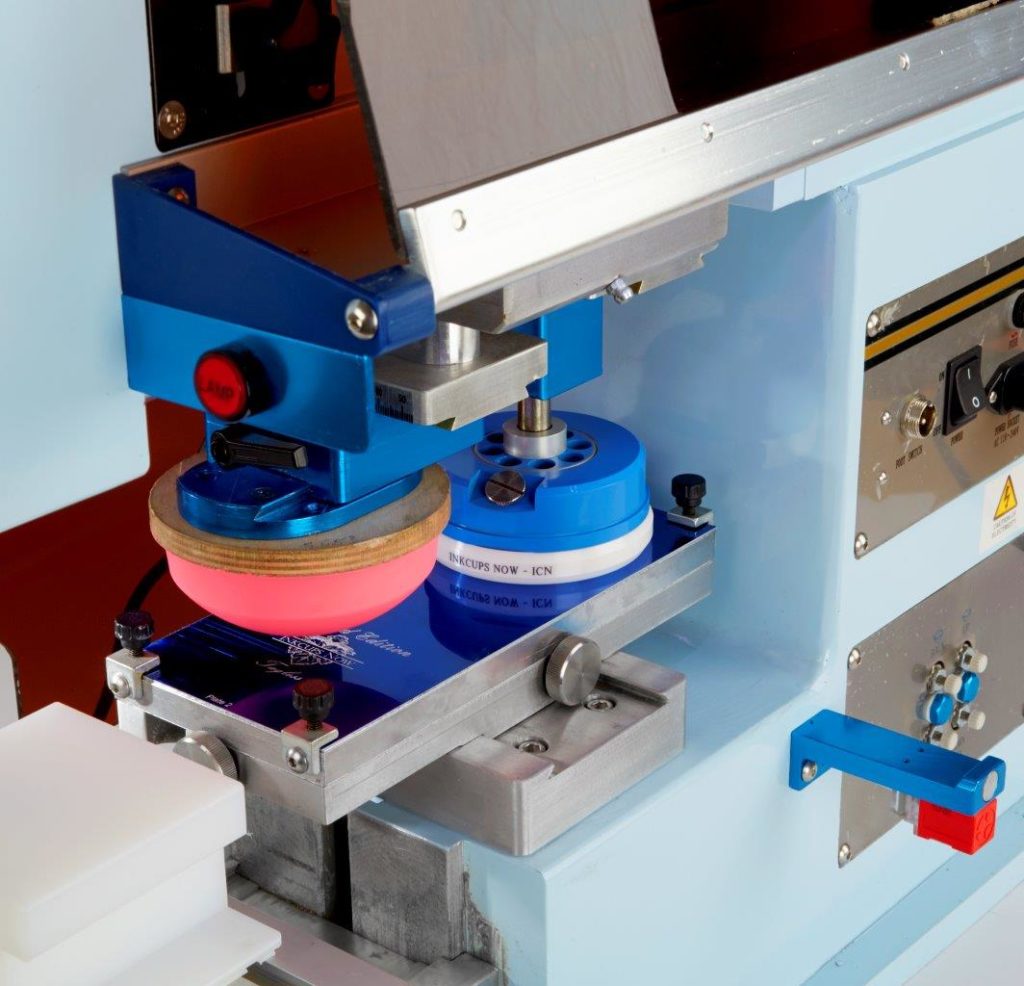

The ICN-B100 1-color tabletop pad printer incorporates the patented VersaCup® ink cup assembly with two-sided ceramic ring and tool-less set up to support rapid job changeover. The B100 is manufactured for demanding heavy-duty performance.

Performance Highlights

  • Handles parts up to 4.25 in (107.95 mm) tall (including fixture)
  • Provides 120 lbs of pad compression at 80 PSI for crisp image transfer
  • Illuminated plate system ensures clear visibility during setup and printing
  • Adjustable inking and print frequency controls let operators fine-tune opacity and speed

Membrane-touch control panel enables quick program and function adjustments

The intuitive membrane-touch-control feature provides ease of program adjustments and machine functions. Suitable for most small to moderately sized parts, this machine excels in the promotional product, electronic and medical industries. The B100 pad printer accepts a variety of pad printing pads for practically any application.

Complete Pad Printing Solution

  • Suitable for most small to moderately sized parts, this machine excels in the promotional product, electronic and medical industries.
  • The B100 pad printer accepts a variety of pad printing pads for practically any application.
  • This printer is also used for tagless garment printing, replacing traditional sewn-in tags and heat transfers.
  • The B100 accepts all of our solvent-based inks. Learn more about pad printing inks.

Inkcups offers a full suite of pad printing supplies and accessories, including pads, plates, fixtures, inks, and training to support the B100 and other tabletop pad printing machines.

Need help with the B100 or other pad printing machines? Visit our FAQs section.

FEATURES

Applications

Resources

B100 Brochure
B100 Video Demonstration
B100PC Video Demonstration
Ink Cup Removal & Cleaning How-to Video
Installing a Printing Pad How-to Video
Pad Print Machine Functions How-to Video
See All Related Documents

Specifications

Number of Colors
1
Max. Image Size
80 mm (3 in)
Max. Part Height
104 mm (4 in)
Max. Speed
1800iph

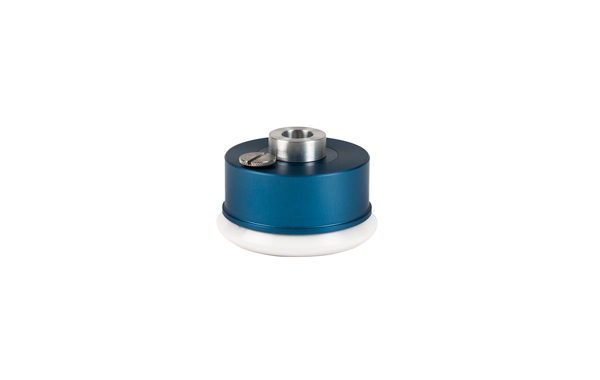

Ink Cup Size
90 mm (3.5 in)
Dimensions (L x W x H)
914 x 762 x 762 mm (36 x 30 x 30 in)
Mounting Options

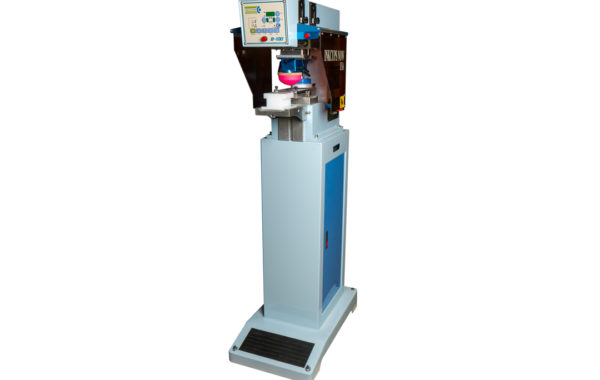

Base cabinet or bench top
Plate Size:
100mm x 225mm
Current/voltage (1 phase/ 50-60 Hz.):
5A/110V
Air consumption CFM (L/min):
.155 CFM (4.4L/min)
Approximate weight (lbs.) net/crated:
43/52kg (95/115lbs)
Crated dimensions:
914.4mm x 762mm x 762mm (36" x 30" x 30")
