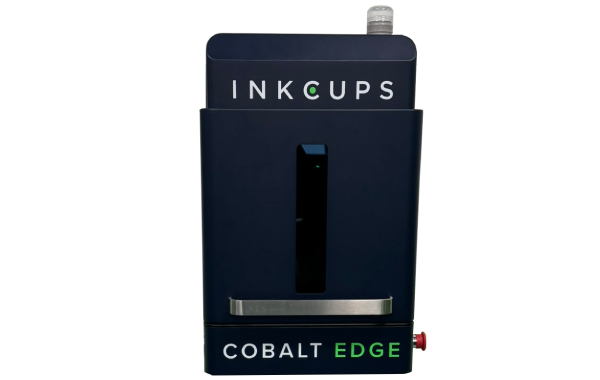

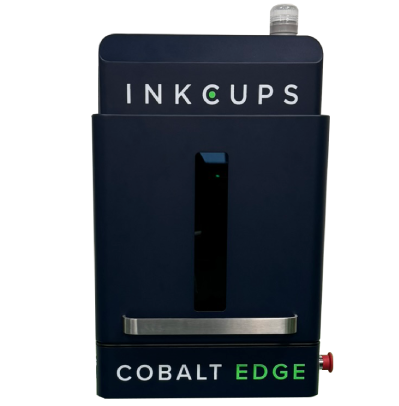

Cobalt Edge Pad Printing Plate Maker

Cobalt Edge Pad Printing Plate Maker

The Cobalt Edge is a high-powered MOPA Fiber Laser designed to etch plate material for several applications ranging from promotional products to apparel and more. This 20-watt laser features a maximum marking area of 4.7” x 4.7”, a spot size of 44 micron and a fiber source life rating of 100,000 hours making it a powerhouse machine.

The built-in focus finder enables precise etching for excellent registration and marking. The Cobalt Edge was also engineered to switch seamless between different plate sizes with a simple switch of the plate bracket. Finally, the flexibility of the Cobalt Edge enables etching of plates for pad printing and laser engraving of a variety of substrates.

Compatible plate materials include: DuraLaze, Cobalt Ultra, Cobalt Steelback, Onyx and Onyx Steelback.

FEATURES

ETCH THIN PLATE MATERIAL

One of the standout features of the Cobalt Edge is the ability to etch very thin plate material for pad printing applications such as apparel printing.

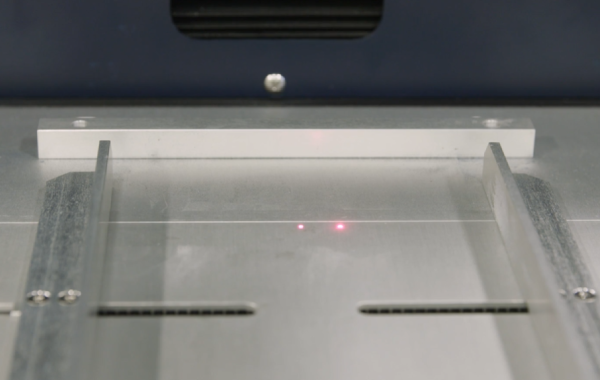

Dual red dot focus finder

Smart Focus Finder

Ideal for multi-color registration, the focal finder automatically locates the precise position for etching, ensuring each mark is accurately aligned.

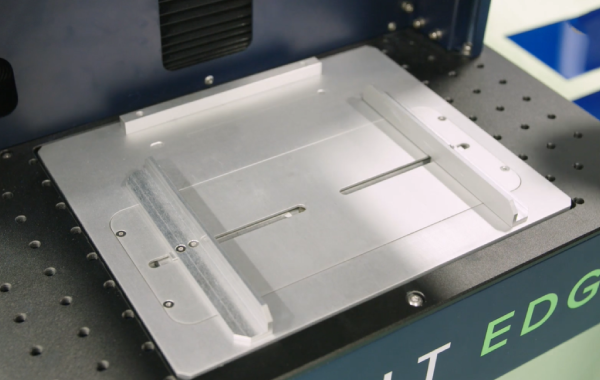

Adjustable Plate Bed

Toolless Adjustable Plate Holder

Designed for flexibility, the system allows effortless switching between different plate sizes with a quick bracket adjustment.

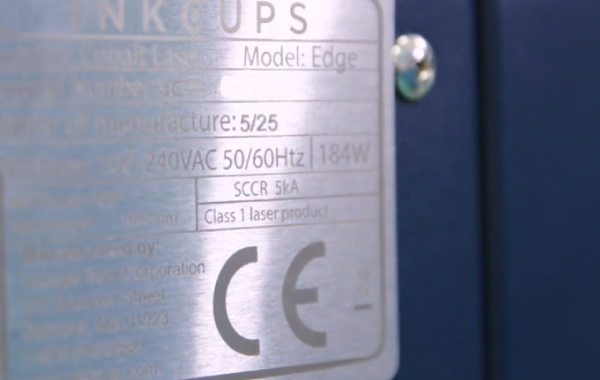

Cobalt Edge is CE Certified

CE CERTIFIED

The Cobalt Edge is CE Certified, meeting strict European health, safety, and environmental protection standards. This certification ensures reliable performance and compliance for use in international markets.

Ventilation System

RX4 Ventilation

RX4

The RX4 advanced ventilation and exhaust system is a must-have accessory for all Inkcups’ laser plate-makers. The RX4 will eliminate dust, debris, and any gases to keep your laser plate-maker clean and reduce maintenance while filtering up to 99.7% of particles from the air. As with all equipment from Inkcups, this ventilation system is reliable and user-friendly.

Resources

Cobalt Edge Brochure Brochure
Cobalt Edge Video Video


Specifications

Addressable Resolution
2400 dpi
Speed (based on a 2" diameter image size)
4 mins, 23 seconds
Max. Marking Area
4.7" x 4.7" (119 mm x 119 mm)
Spot Size
44 micron
Max. Line Screen
200 lpi
Laser tube/diode/fiber source life rating
100,000 hours
