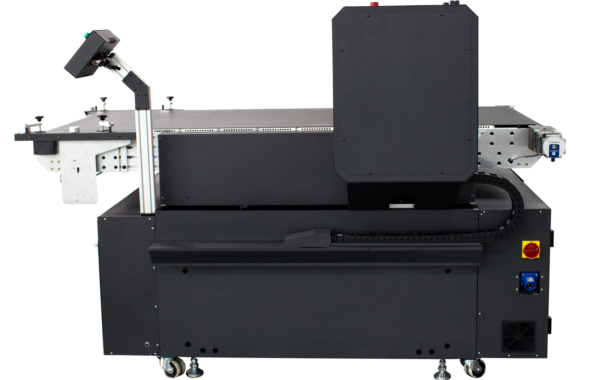

XJET 800 UV Flatbed Inkjet Printer

XJET 800 UV Flatbed Inkjet Printer

The XJET800 UV flatbed inkjet printer for industrial applications can print a 31.5″ x 24.4″ area in under 2.5 minutes with exceptional print quality – including full-color CMYK-WW + optional varnish – thanks to the latest in print head technology. The XJET800 is also flexible – able to handle parts up to 10″ tall.

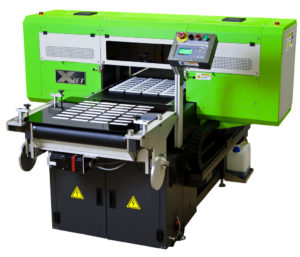

Building off of the successful XJET, the XJET800 has the latest print head technology, capable of delivering stunning prints. The XJET800 offers a larger print area and faster print speeds than ever before.

Choose from a variety of inks to print with the XJET800. The DL Series was formulated for excellent adhesion to glass and plastic. Paired with MagiCoat pre-treatment solution, glassware items can handle up to 200 residential washes (depending on temperature and detergent). The Prop. 65 compliant S1 Series is the perfect solution for a variety of rigid substrates such as stainless steel and metal. Finally, the XFlexx Series is compatible with flexible applications. In addition to the numerous inkjet inks we carry, we also perform all adhesion requirements for you. This is done during the sampling process. Once we have completed adhesion testing according to ASTM, we will send your samples back to you along with the report.

As with all Inkcups flatbed UV printers, the XJET800 is capable of handling a traveling fixture in addition to the rising fixture. Inkcups provides a custom tooling service from concept to build.

All digital machines are backed by InkcupCare Warranty with an extended warranty available as well.

Need help with the XJET800 or any other digital printer? Visit our FAQs section.

  • Industrial Design – continuous printing

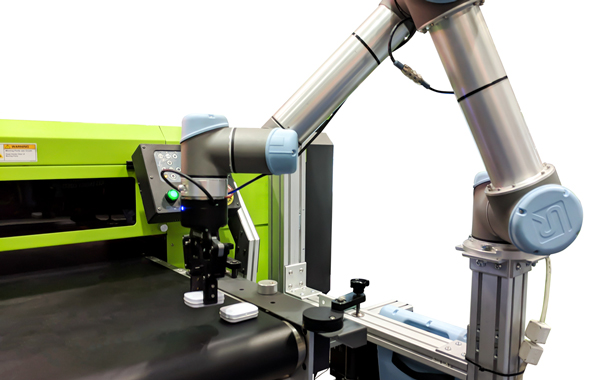

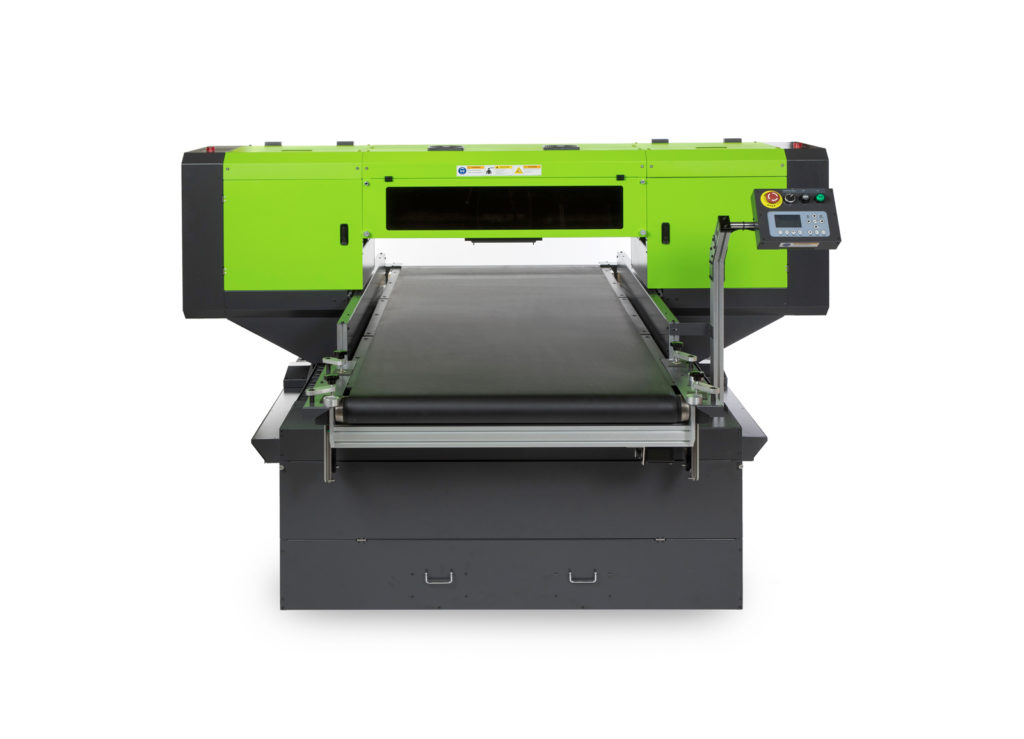

  • Conveyor loading/unloading system

FEATURES

Applications

Resources

XJET 800 Brochure
XJET800 Video Demonstration

Specifications

Product Type
Flat or slightly curved
Bed Size
800 x 620 mm (31.5 x 24.4 in)
Speed (based on bed size)
14m²/hr
Max. Part Height
254 mm (10 in)
Lamp Style
2UVLED
Ink Type
UVLED
Ink Configuration
CMYKWW or CMYKW+Varnish
Print Modes
Uni/Bi
Bulk Ink System
3 Liter
Dimensions (lxwxh)
2139.95 x 2160.02 x 1500.12 mm (84.25 x 85 x 59 in)
Voltage
220 VAC 15 Amp
Maximum Resolution
1200dpi
Bed Type
Conveyorized
