Industrial UV Printers

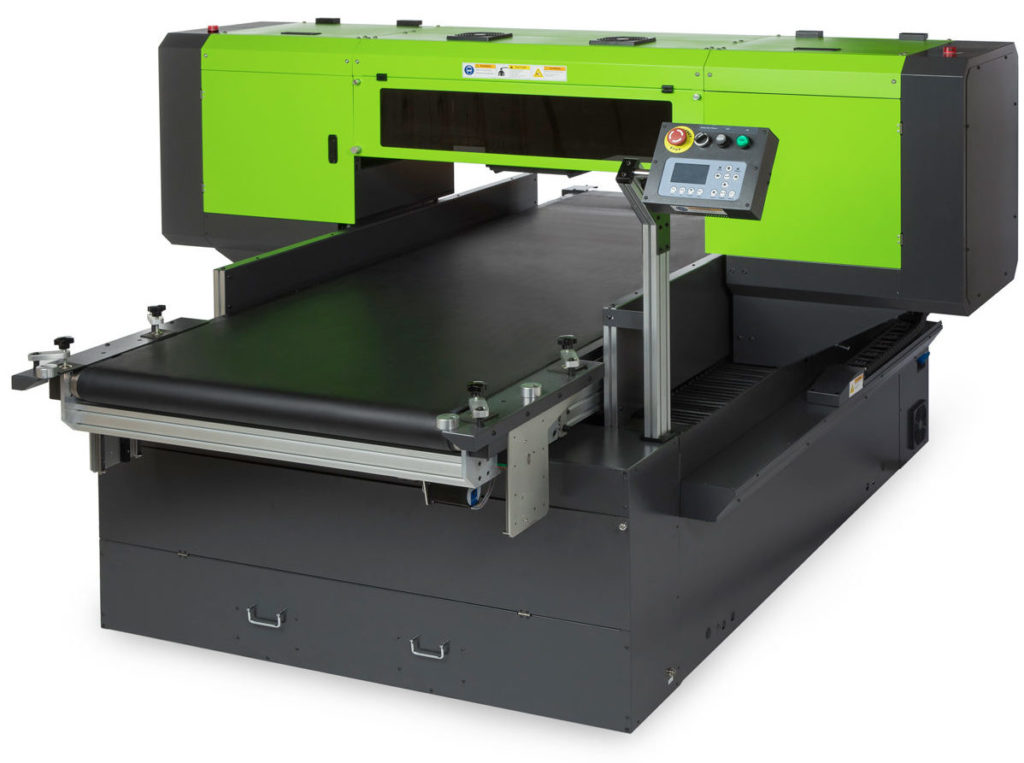

XJET800-T Tall UV Inkjet Printer

XJET800-T Tall UV Inkjet Printer

The latest addition to Inkcups’ conveyorized flatbed family is the XJET800-T. “T” or Tall refers to the extended height the bed is able to drop in order to fit a wide variety of products and applications including popcorn tins, bins, coolers and more. With a total print area of 31.5″ x 25.2″ and the ability to handle parts up to 18.1″ tall, this UV inkjet printer is industrial in build and capability.

This UV inkjet printer utilizes the latest in print head technology to produce full-color prints (CMYK WW and an optional varnish) with high speed output and high quality results.

Need help with the XJET800-T or any other digital printer? Visit our FAQs section.

  • Industrial Design – continuous printing
  • Conveyor loading/unloading system

FEATURES

Production-Grade UV Printing

The XJET800-T tall UV inkjet printer allows for continuous, high-volume production printing, thanks to the patented Inkcups loading system and a conveyor belt that can be easily integrated into most automation systems.This advanced printing technology combined with UV inks ensures vibrant, fast-drying, durable graphics that are ideal for diverse materials and applications.

uv inkjet printer

Industrial Printer Design

Developed to be a workhorse. The XJET800-T tall UV inkjet printer is built to run 24/7 without compromising UV print quality. Its automation-ready design easily integrates with a variety of auto-loading and /unloading mechanisms, making it equipped to handle high-volume, industrial production environments.

Applications

Coolers-inkjet-printing-application

Coolers

With the extended part height of the XJET800-T, tall parts such as coolers are easy to print!

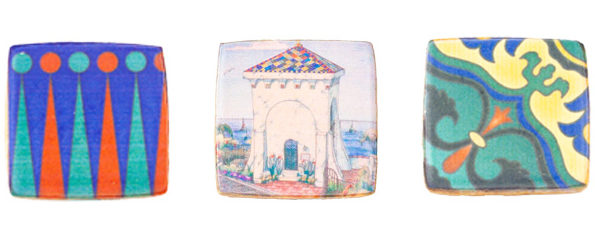

Print on cookies with our Candymark edible ink

Edible Goods

Purchase an XJET 800-T EdiJET and print directly onto edible items such as cookies, cakes, and candies. EdiJET ink is safe to consume and has been known to pass FDA regulation on finished printed goods.

OPTIONAL ACCESSORIES

Print head recovery system

Head Recovery System

The Head Recovery System is capable of cleaning both Gen 4 and Gen 5 printheads. Head recovery can be performed to restore printheads that may be clogged, increasing the longevity of the printhead and ensuring a consistent printing process. By using EBD cleaner in combination with this unit, printheads can be cleaned for further printing.

  • Cleans Gen 4 and 5 printheads
  • Utilizes EBD Cleaner
  • Available in 120VAC or 220VAC

Resources

XJET800-T Brochure Brochure


Specifications

Product Type
Flat or slightly curved
Bed Size
800 x 640 mm (31.5 x 25.2 in)
Speed (based on bed size)
14m²/hr
Max. Part Height
460 mm (18.1")
Lamp Style
2UVLED
Ink Type
UVLED
Ink Configuration
CMYKWW or CMYKW+Varnish
Print Modes
Uni/Bi
Bulk Ink System
3 Liter
Dimensions (lxwxh)
2181 mm x 2363 mm x 1690 mm (85.9" x 93" x 66.5")
Voltage
220 VAC 15 Amp
Maximum Resolution
1200dpi
Bed Type
Conveyorized
Weight (Net / Crated)
1587 lbs (720 kg) / 2227 lbs (1010 kg)
