Digital Printing Innovation: How to Print Full-Wrap Handled Cups Before Handle Assembly

Collaborations are everywhere. Reusable drinkware is everywhere. From influencer partnerships and sports licensing programs to corporate branding and retail promotions, customized travel tumblers have become one of the most popular promotional products on the market.

But there is one challenge that continues to frustrate decorators and manufacturers alike: handles.

Large travel tumblers with handles have exploded in popularity, yet the very feature that makes them convenient to use creates significant decoration challenges. Traditional printing methods often struggle to achieve seamless, full-wrap graphics on handled drinkware because the handle itself obstructs access to the vessel surface.

Fortunately, advances in digital printing technology have opened new possibilities. By rethinking the production workflow and leveraging high throw UV printing technology, manufacturers can now create stunning full-wrap designs on handled cups before final handle assembly.

Why Handled Drinkware Is Difficult to Decorate

Most large handled tumblers are designed using a post-and-screw assembly system. The stainless-steel body of the vessel is manufactured and finished first, while the handle is attached later using mounting posts that protrude from the cup wall.

Once the handle is installed, it extends several inches from the cup body. This creates a physical barrier that prevents many digital printing systems from accessing the entire printable surface area. As a result, decorators are often forced to reduce artwork coverage, leave blank spaces, or simplify designs.

For brands seeking eye-catching collaborations, licensed artwork, or full-wrap personalization, these limitations can be a major obstacle.

A New Approach: Print Before Handle Assembly

The solution begins by adjusting the manufacturing sequence.

Instead of attaching the handle immediately after the mounting hardware is installed, manufacturers can move the vessel to digital decoration before final assembly. This creates an opportunity to print across nearly the entire circumference of the cup while still accommodating the handle mounting posts.

The workflow typically follows these steps:

1. The stainless-steel vessel is formed and coated.
2. The cup is insulated through vacuum sealing or foam filling, depending on the application.
3. Holes are drilled and handle mounting posts are installed.
4. The vessel moves to digital decoration before the handle is attached.
5. After printing is complete, the handle is assembled as the final production step.

This simple adjustment dramatically expands decoration possibilities and enables true full-wrap graphics on handled drinkware.

The Role of High Throw Digital Printing

Printing before handle assembly introduces a new challenge: the mounting posts still protrude from the cup surface.

Traditional digital printers are designed to print at relatively close distances between the printhead and substrate. When obstacles such as posts, steps, contours, or raised features are present, maintaining image quality becomes difficult.

This is where high throw digital printing technology changes the game.

High throw printing allows the printhead to remain farther away from the substrate while still delivering precise ink placement and high-resolution image quality. The increased throw distance enables the printer to clear obstructions such as handle posts without compromising print performance.

As a result, decorators can print over and around these mounting features while maintaining vibrant colors, sharp details, and seamless wraparound graphics.

Meet the Helix® High Throw UV Digital Printer

The Helix® High Throw UV Digital Printer was specifically developed to decorate cylindrical objects that present difficult printing conditions.

Unlike conventional cylindrical printers, the Helix® High Throw is engineered to accommodate vessels with varying heights and challenging geometries by maintaining a greater print distance while continuing to deliver exceptional image quality.

This capability makes it an ideal solution for:

• Handled travel tumblers (with removable handles)
• Stepped drinkware
• Stemless wine glasses
• Tapered cylindrical containers
• Specialty drinkware with raised features

By allowing the printhead to clear protrusions while maintaining high-resolution output, the Helix® High Throw expands the range of products that can be digitally decorated without sacrificing design quality.

Unlocking New Opportunities for Brands and Manufacturers

The ability to digitally decorate handled drinkware before final assembly creates exciting opportunities across multiple markets.

Licensing and Collaboration Programs

Brands can now apply bold, full-wrap artwork to handled tumblers without design restrictions caused by the handle. This makes the product category more attractive for entertainment licensing, sports partnerships, influencer collaborations, and limited-edition releases.

Corporate Branding

Organizations can maximize available decoration space for logos, messaging, and promotional graphics while maintaining a premium product appearance.

Personalization Programs

Consumers increasingly expect customized products. Full-wrap digital printing enables unique personalization options, including names, graphics, seasonal designs, and short-run campaigns.

Reducing Inventory and Forecasting Risk

Beyond decoration advantages, printing handled drinkware before final handle assembly can support more agile production and inventory strategies.

Instead of importing or stocking large quantities of pre-decorated mugs tied to specific designs, teams, events, influencers, or seasonal promotions, brands can maintain inventories of undecorated or semi-finished drinkware and decorate products based on actual demand. This approach reduces forecasting risk and helps minimize obsolete inventory when trends, licensing programs, or consumer preferences change unexpectedly.

Supporting Print-on-Demand (POD) Fulfillment

For brands operating print-on-demand or short-run fulfillment programs, digital decoration provides the flexibility to respond quickly to new opportunities without waiting for overseas decoration and finished-goods production. New artwork, limited-edition collaborations, corporate programs, and seasonal campaigns can be launched as demand develops rather than requiring large upfront commitments.

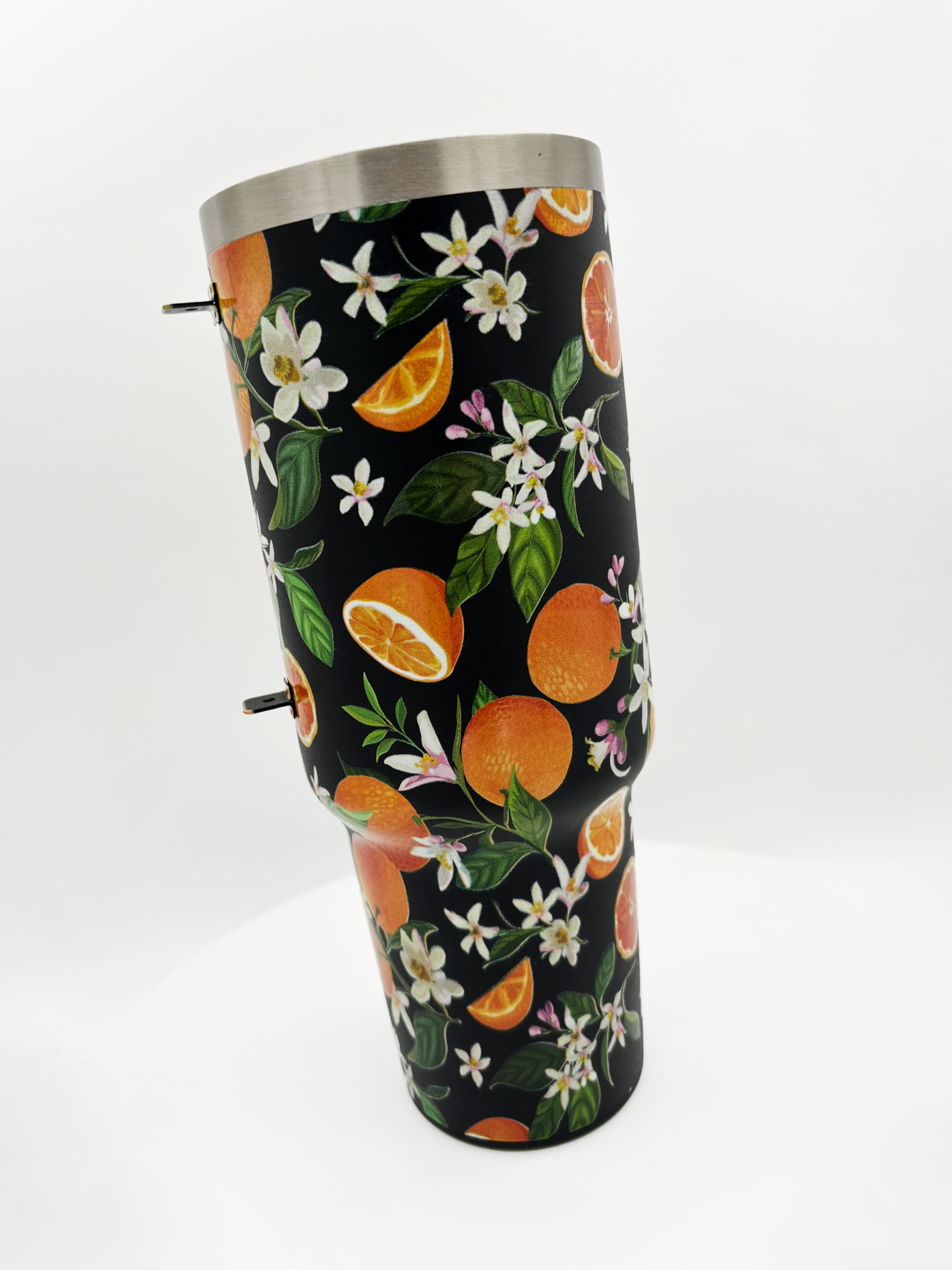

As the handle is not yet attached during decoration, the Helix® High Throw can also print across more of the vessel surface, including areas around the handle mounting posts (under the handle eventually). This enables fuller-wrap designs compared to competitive methods and a more premium finished appearance than is often possible after final assembly.

The Future of Handled Drinkware Decoration

As demand for reusable drinkware continues to grow, manufacturers and decorators are searching for ways to deliver more impactful designs on increasingly complex products.

By combining a modified assembly workflow with advanced high throw UV printing technology, full-wrap decoration on handled tumblers is no longer out of reach.

The Helix® High Throw UV Digital Printer demonstrates how innovation in digital printing can overcome physical obstacles, enabling manufacturers to decorate products that were once considered difficult or impossible to print. For brands looking to maximize creativity, collaboration opportunities, and customization potential, high throw printing represents a significant step forward in cylindrical UV decoration.

Ready to further the conversation? Contact us today.
