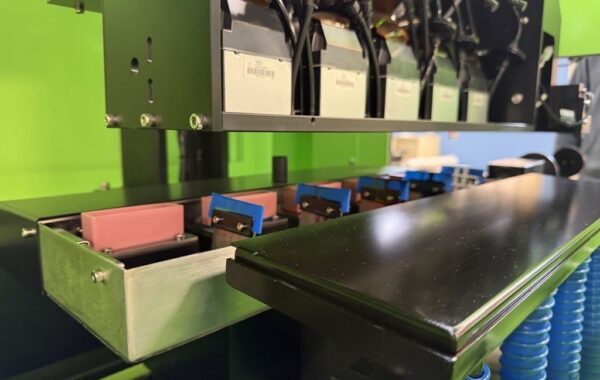

Helix® High Throw Cylindrical UV Printer

Helix® High Throw Cylindrical UV Printer

The Inkcups Helix® High Throw UV Cylindrical Printer is an industrial direct-to-object UV inkjet printer designed to decorate cylindrical and conical products, including irregular and contoured shapes. It delivers vibrant, full-color, 360° graphics on bottles, tumblers, containers, cups, and tubes from a single, efficient workstation.

An advanced direct-to-object industrial inkjet machine, the Inkcups Helix® High Throw UV Cylindrical Printer is designed to decorate cylindrical and conical products, including straight, contoured and irregular shapes. It delivers vibrant, full-color graphics on products such as bottles, tumblers, containers, cups, and tubes, all from a single, efficient workstation.

The Helix® High Throw UV printer is engineered with high throw technology to handle complex shapes and height variations up to 15 mm, making it ideal for challenging applications such as stepped or highly contoured drinkware.

Compatible with a wide range of materials including plastic, metal, ceramic, and glass, the Helix® High Throw is a powerful addition to production environments looking to expand capabilities while maintaining exceptional print quality.

The Helix® High Throw is a fully servo-driven system, ensuring precise, repeatable printing on every part. The printer supports 360° seamless decoration, enabling full-wrap designs that stand out on the shelf.

FEATURES

What is High Throw Technology in Printing?

Also known as high drop or high gap printing, high throw technology increases the distance between the printhead and the substrate, allowing ink to be accurately placed on challenging surfaces. This is especially beneficial for vessels with posts for handles, significant top-to-bottom diameter variation, stepped vessels, or pronounced design features.

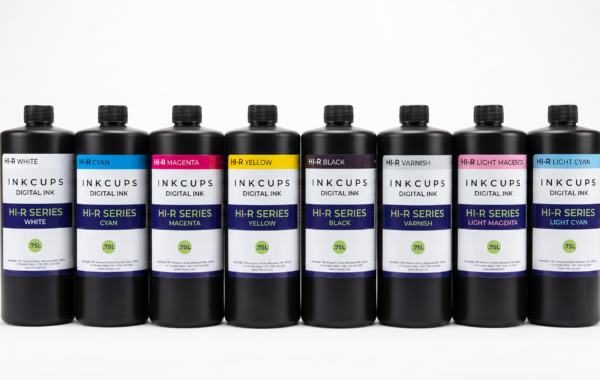

HI-R Cylindrical Inkjet Ink

Built Around Your Production Needs from Day One

Ink Configurations:

  • WW+CK+MY+LcLm+VV
  • WW+CK+MY+VV

The Helix® High Throw UV Cylindrical Printer can be configured with two different ink setups to meet your production needs. The addition of light cyan and light magenta to the standard four-color process enables six-color printing, delivering smoother gradients and photo-realistic images.

Learn more about HI-R Series Inks
Helix High Throw Programmable Tilt

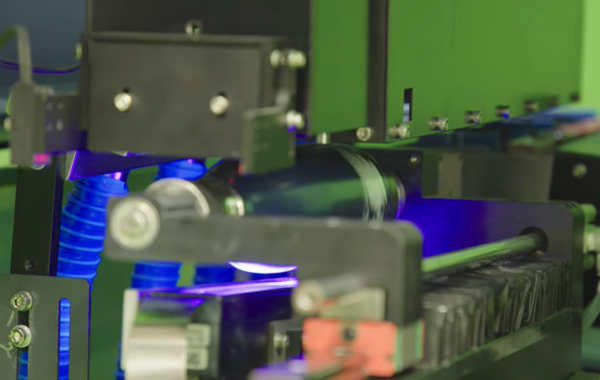

Automatic Programmable Tilt

For tapered drinkware and conical items, an optional automatic programmable tilt and height adjustment system provides accurate alignment and dependable results on every print cycle.

Ability to Decorate a Wider Range of Vessels

There are just some vessels that traditional cylindrical inkjet printers cannot accommodate with suitable output. It’s particularly difficult to achieve striking visuals on stepped vessels with three very different diameters and slants: the bottom, the step, and the top, The Helix® High Throw is specifically engineering for these applications. and its extended throw capabilities flawlessly deliver exceptional printing results, even on the most challenging shapes

360° Designs on Handled Drinkware

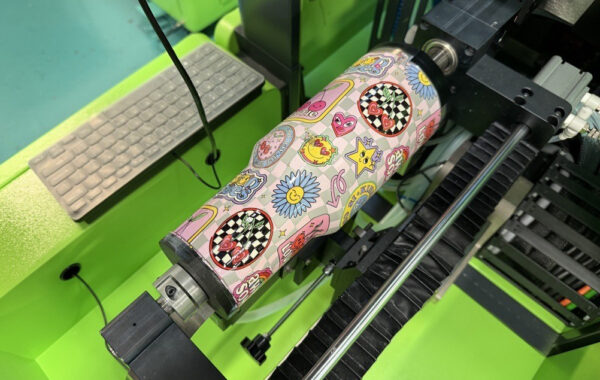

Many handled tumblers feature removable handles. Once removed, short welded posts remain on the vessel surface. Thanks to the increased distance between the printhead and the product, High Throw technology can print cleanly over these posts without sacrificing quality.

After printing, the handle can be reattached, resulting in a seamless, full-wrap design.

PRINT TECHINQUES

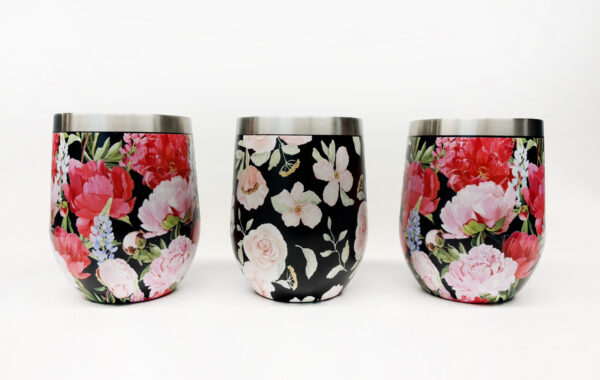

Helix High Throw Stemless Wine Glass Sample

Spot Varnish Enhancement

Strategic placement of spot varnish enhances both the look and feel of cylindrical products. This simple yet impactful technique adds depth, contrast, and a premium finish, elevating overall design quality.

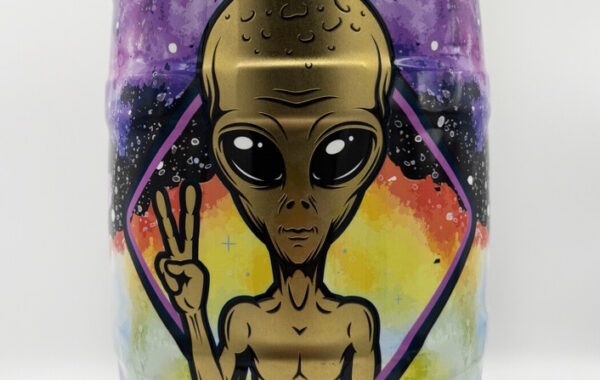

Helix High Throw Sample- Mini Keg

Photorealistic Quality Images & Smooth Gradients

With the WW+CK+MY+LcLm+VV, ink configuration, the Helix® High Throw produces photorealistic images with exceptional detail. This six-color process enables smooth gradients, accurate skin tones, and high-resolution output for visually striking results.

Applications

The Helix® High Throw UV Cylindrical Printer is built for complex geometries and irregular shapes, including, stepped drinkware, wine bottles, mini kegs, pots for plants, dog bowls, wine tumblers, large diameter jugs, and more.

Specifications

Product Type
Cylinder or Taper (360 degree print)
Part Diameter
2.56" - 7.09" (65 mm - 180 mm)
Max. Part Height
1.97" - 9.84" (50 mm - 250 mm)
Ink Type
UV LED
Ink Configuration
WW+CK+MY+LcLm+VV or WW+CK+MY+VV
Dimensions (lxwxh)
100.4" x 47.25" x 72.5" (255 cm x 120 cm x 184 cm)

Resources

Helix High Throw Brochure
