Pad Printing Machines

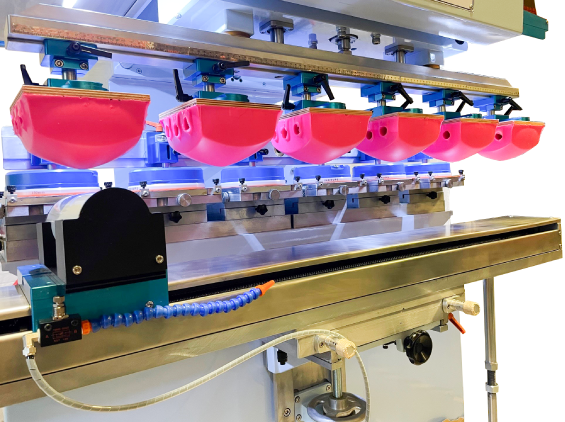

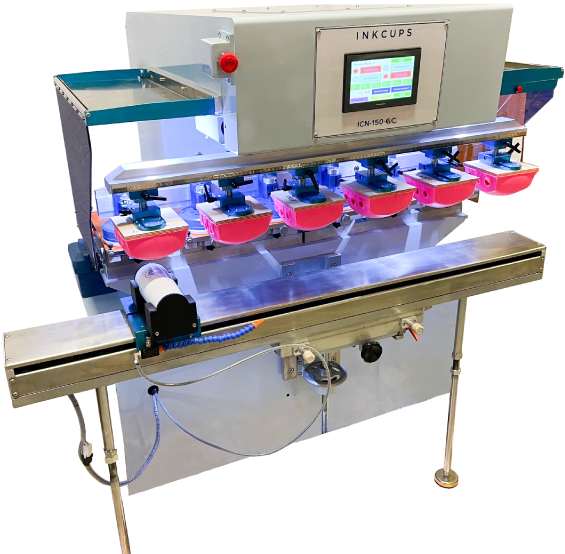

ICN-150-6 6-Color Large Image Pad Printing Machine

ICN-150-6 6-Color Large Image Pad Printing Machine

The 6-color ICN-1506 is a large-part pad printer machine. It handles 150mm ink cups that enable printed images up to 140mm in diameter – significantly larger than the industry’s standard 130mm ink cups, which are only capable of 115mm images. The unique pad/ink cup stroke allows for easy loading of large parts and fine-tuning for the highest quality images.

The ICN-1506’s excellent pad compression capability provides ample room for large, hard printing pads or pad clusters.

Need help with the ICN-1506 or other pad printing machines? Visit our FAQs section.

  • 6 color pad printer
  • Print large images up to 140mm

Resources

Specifications

Number of Colors
6
Max. Image Size
140 mm (5.5 in)
Max. Part Height
203 mm (8 in)
Max. Speed
200 iph
Ink Cup Size
150 mm (5.9 in)
Dimensions (L x W x H)
1600 x 1320 x 1700 mm (63 x 52 x 67 in)
Mounting Options
Base cabinet
