2200LS 2-Color Linear-Conveyor Pad Printing Machine

2200LS 2-Color Linear-Conveyor Pad Printing Machine

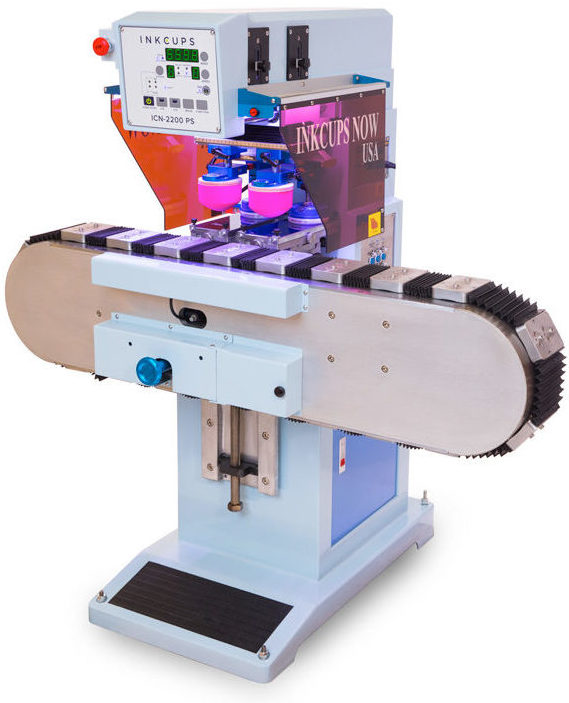

The 2200-LS is a 2-color linear conveyor pad printer equipped with a 20-station servo-driven indexing conveyor. This pad printing machine utilizes a 90mm Versacup® ink cup and 90mm ceramic ring to print images up to 80mm in diameter. The 2200-LS 2-color linear conveyor pad printer can be interfaced with automatic loading and unloading systems to create optimal production workflow. This industrial machine is convenient for printing high volumes of industrial, medical and promotional products. It is ideal for printing 1- or 2-color images on smaller parts such as plastic housings. Including the fixture, this machine is able to print on items up to 150mm tall (5.9”). The 2200LS’ linear conveyor features shot-in print-station registration for very tight registration (+/-.001”) and micro-adjust system for moving the conveyor in and out for easy positioning of the graphic on your part.

The 2200LS 2-color linear conveyor pad printer’s PLC-touch control allows for the simple programming of all setup features. This automatic pad printer has ample compression capability.

This machine can utilize any of the solvent-based pad printing inks by Inkcups. In addition to providing the full solution for pad printing, Inkcups offers application consulting. Since we have tested numerous substrates for pad printing, we are truly the experts when it comes to recommending full solutions and inks.

Need help with the 2200LS or other pad printing machines? Visit our FAQs section.




ICN-2200L Brochure
ICN-2200L Video Demonstration
ICN-2200L Product Manual


Number of Colors
Max. Image Size
80 mm (3 in)
Max. Part Height
152 mm (6 in)
Max. Speed
Ink Cup Size
90 mm (3.5 in)
Dimensions (L x W x H)
1372 x 762 x 1397 mm (54 x 30 x 55 in)
Available Automation
Linear Over-Under Conveyor
Mounting Options
Base cabinet
Air consumption CFM (L/min):
.109 CFM (3.1 L/min)
Weight (Net)
546 lbs. (248 kg)
